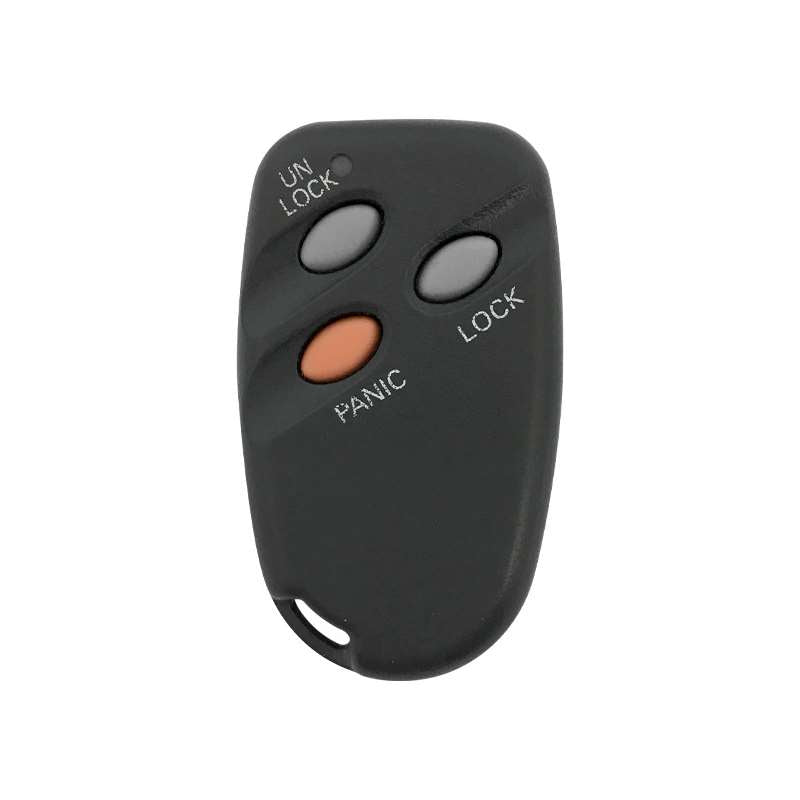

Remote For Mitsubishi:
This remote features 3 buttons: Lock, Unlock and Panic
FCC ID: E4EG8DL
Part number: MR368851.
Condition: Pre-Owned
Brand: Mitsubishi
This remote sends it's signals on a frequency of 315Mhz. This remote will work for your vehicle if your vehicle is equipped with factory keyless entry.
Programming Procedure:
1. With the key OUT of the ignition switch, locate and disconnect the Light Failure Sensor connector from the Light Failure Sensor unit. The light failure sensor is located in the trunk near the left hinge (see figure A - it is the smaller of the two boxes in that area and it's brown in color). The light Failure sensor connector is a plastic connector attached to the end of the wire harness going into the Light Sensor Unit.
2. After disconnecting the connector, use the figure to map the connector. The view in the figure is looking directly into the cavities of the connector, with the thumb tab up. You should see wires going in to the back of cavities 1-3, 4, 7-9, 11 and 12. Psotions 5, 6, and 10 aren't used.
3. Using a suitable jumper wire, connect terminal number 12, PRG (black wire going into the back) to terminal number 11, GND (white/black wire going into the back of the 12 cavity Light Failure Sensor connector (illustrated). The vehicle confirms programming mode by automatically cycling the power door locks (lock-unlock) once in addition to activating the trunk opener motor to unlock. Leave the wire connected throughout the procedure.
4. Press and release any button on the first remote. The vehicle confirms registration by cycling the door locks one more time.
5. Repeat step 4 to program a second remote. (The system supports a maximum of two remotes).
6. disconnect the jumper wire to exit programming mode.
The following vehicles can use this remote when equipped with the factory keyless entry system:
1998 Mitsubishi Galant, 1998 Mitsubishi 3000GT and 1999 Mitsubishi 3000GT.
