Descripción

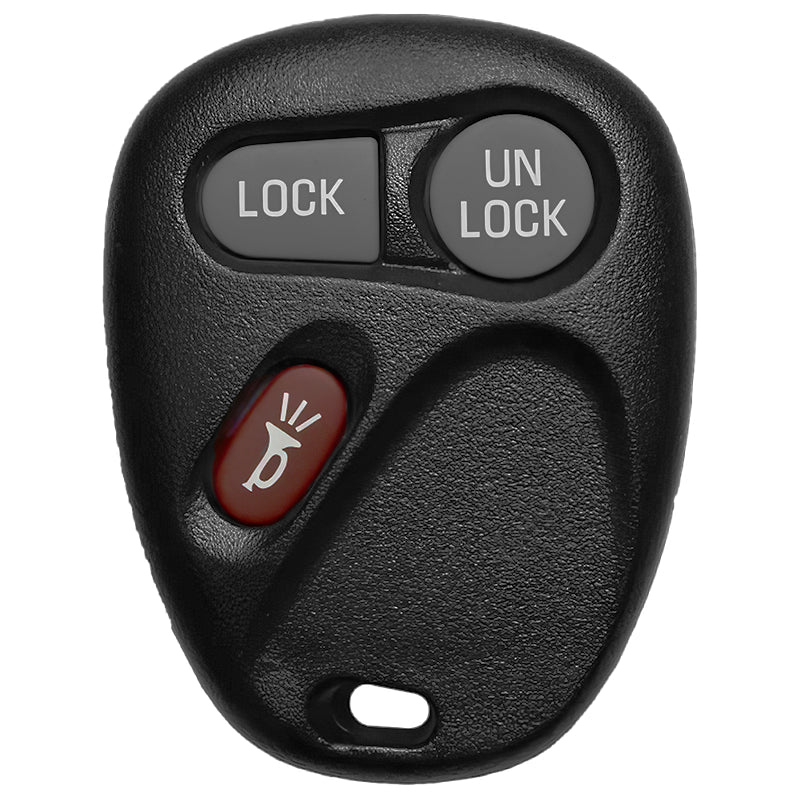

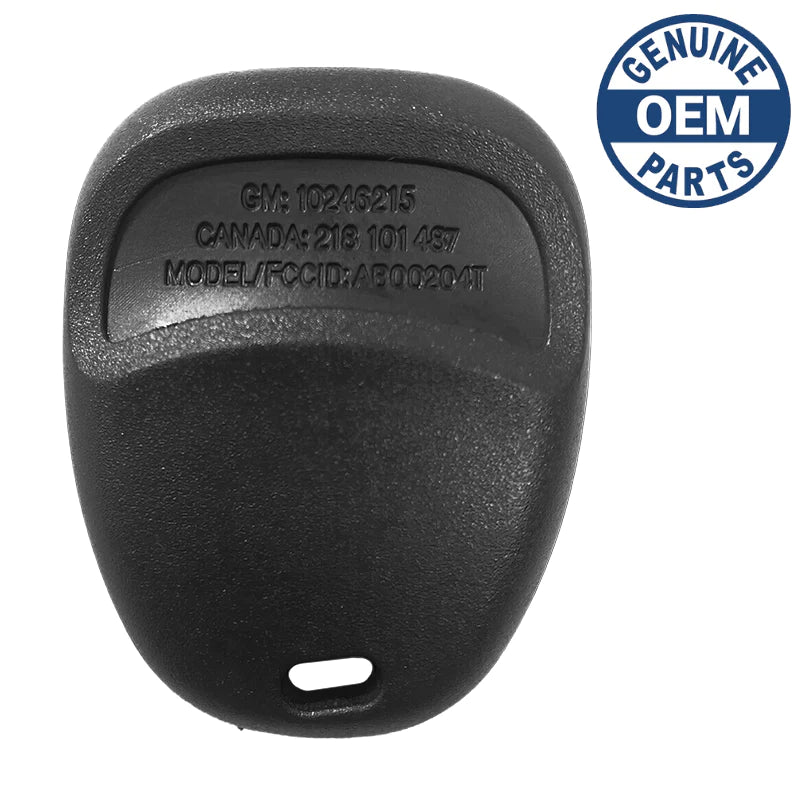

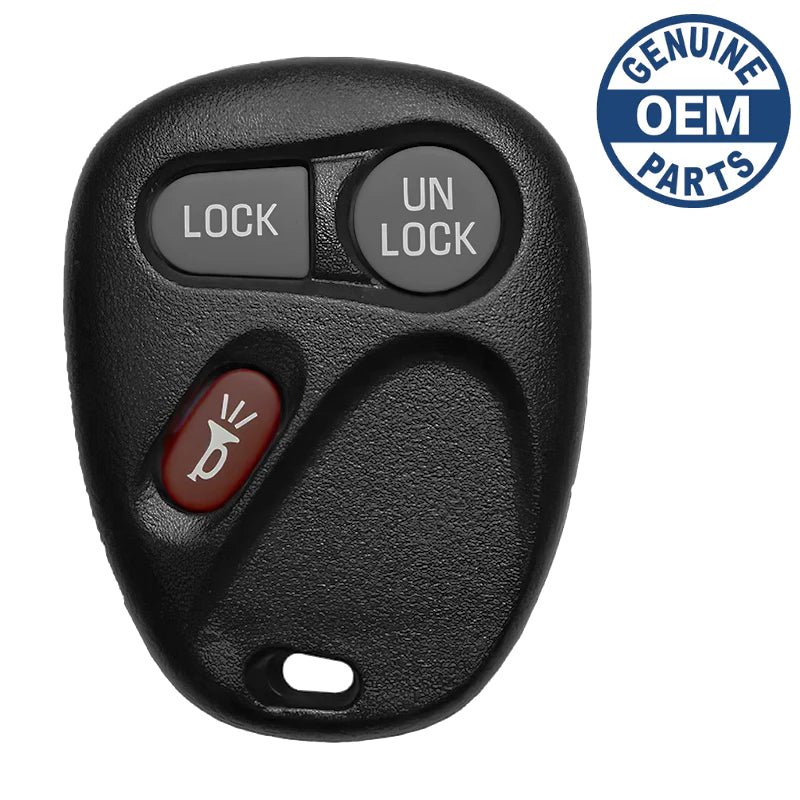

FCC ID: ABO0204T
Part Number: 10245952
Brand: GM
Condition: OEM New
It operates at 315Mhz and is compatible with 1997-2000 Venture, Slihouette, and Montana equipped with keyless entry and power sliding door but not equipped with alarm. The remote comes with instructions and free tech support. The remote is tested on a keyless entry tester before shipping to you.
Programming Procedure:
1. Remove the ignition key from the ignition lock cylinder.
2. Remove the ??CM PRGRM??fuse from the fuse panel, accessed by opening the
front passenger door. Use the legend on the fuse panel to properly locate the
??CMPRGRM??fuse.
3. Close all of the doors.
4. Close the liftgate.
5. Insert keys into the ignition, and turn the ignition lock cylinder to ACC (one click
towards you - the opposite direction from starting the engine).
6. Turn the ignition lock cylinder to OFF, and then back to ACC within 1 second.
7. Open and close any vehicle door. A chime will be heard when the system enters the
programming mode.
8. Press and hold the transmitter LOCK and UNLOCK buttons simultaneously for 14
seconds. IMPORTANT: After 7 seconds, a chime may be heard confirming
successful synchronization. It is necessary to wait approximately 14 seconds for a
second chime that will confirm successful programming. Your new remote has
been accepted and all existing remote codes have been erased.
9. Repeat the previous step on each additional transmitter to be programmed
(including any existing transmitters).
10. Remove the ignition key from the ignition lock cylinder.
11. Install the ??CM PRGRM??fuse back into the fuse panel.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Chevrolet Venture (1997-2001)
Pontiac Trans Sport (1997-1998)
Oldsmobile Silhouette (1997-2001)
Pontiac Montana (1999-2001)
