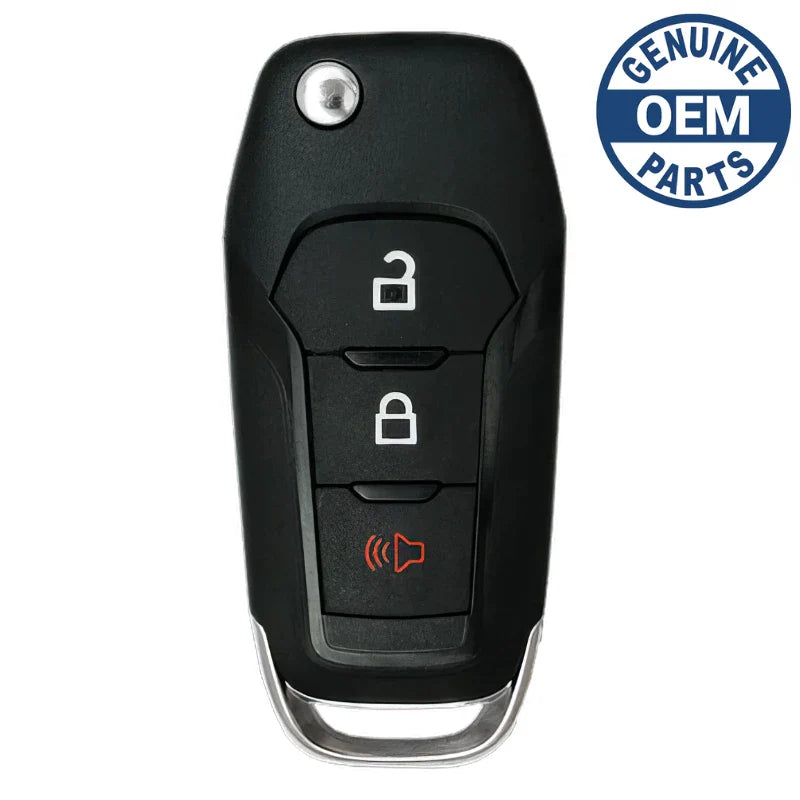

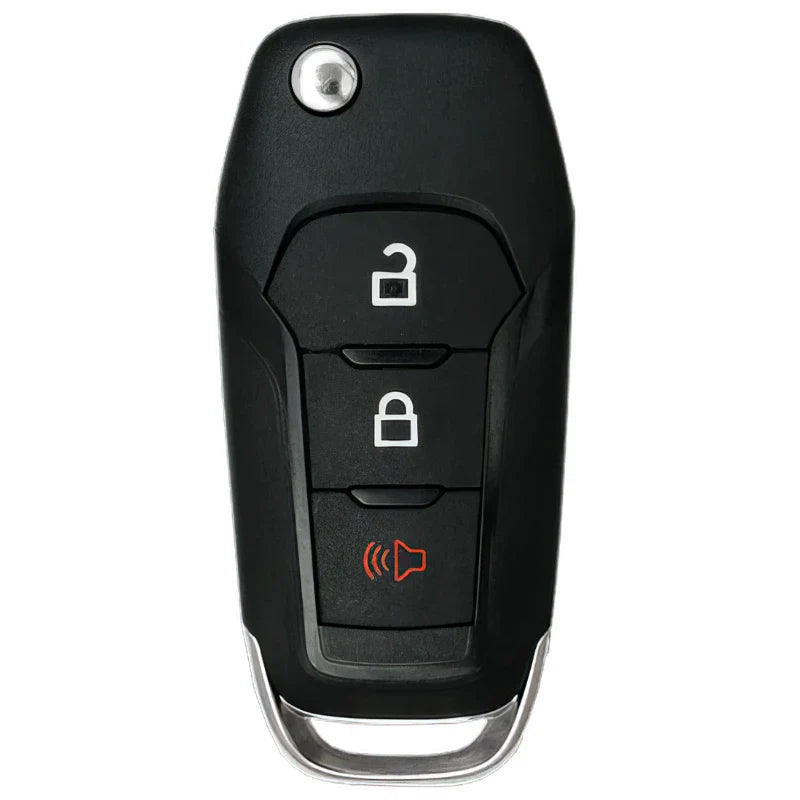

2019 Ford F-150 Flipkey Remote PN: 5923667, 164-R8130
2019 Ford F-150 Flipkey Remote PN: 5923667, 164-R8130
Is this your key?
- Part number 164-R8130. Match it to the number on the back of your key or inside the battery cover. Keys that look alike can have different numbers.
- Flip key. You turn the key to start. The blade folds into the remote.

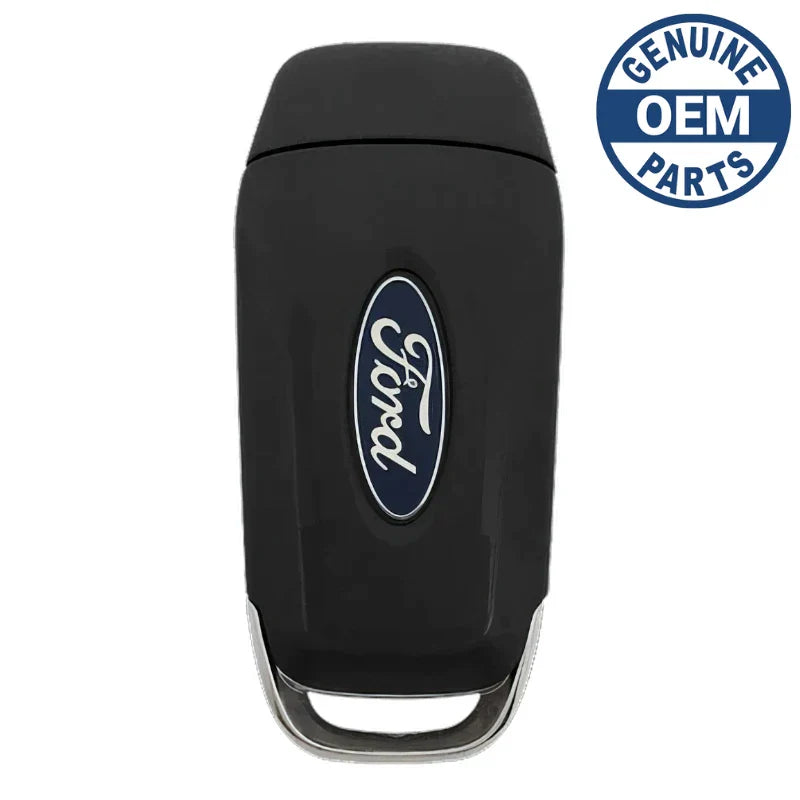

Turn your old key over. This is the back of this part. Compare the shape, the logo and the label with yours. The part number and FCC ID are printed there or inside the battery cover.
Different key? We also have for your :
This is the only key we list for the .
- Usually far less than the dealer charges. The price is for the part; programming is done separately.
- Must be programmed to your car before it works. How depends on your vehicle; we suggest a local locksmith. Find a locksmith near you
- Battery CR2032, installed.
Add to your order
Ships in 2–5 business days
- One part number per listing. What you order is the manufacturer part number shown, not a look-alike with the same FCC ID.
- 30-day returns. Return policy
- Ships from our New Jersey warehouse with tracking. Shipping options
What happens after you order
- We check it and ship it. We pick your part by its part number and ship it from our New Jersey warehouse, with tracking. Added your VIN? We check the part against your car first and contact you if anything doesn’t match.
- Program it to your car. Not sure how your car does it? Call or email us with your VIN and we’ll tell you before you buy.
- Get the key cut. The metal blade comes uncut, so a locksmith cuts it to match your locks. It’s usually done in the same visit as programming.
- Done. Still stuck? We help. Call 386-586-3650 or email help@remotesandkeys.com. If it won’t work with your car you have 30 days to return it.
Questions before you buy
How do I know this fits my car?
Look at the back of your current flip key, or inside the battery cover. If the part number (5923667, 164-R8130) or the FCC ID printed there matches the one in the specifications on this page, it’s the right part.
Lost your key, or can’t read it? Type your VIN when you order and we check it before we ship. Your VIN is on your registration, insurance card, or the driver-side bottom of the windshield.
Which condition should I choose?
All conditions do the same job in your car: same buttons, programmed the same way. The difference is how it looks and what it costs.
- OEM New: a genuine factory part from the car maker, never used. The same as the dealer’s, usually for less.
- OEM Refurbished: genuine part, restored and tested by a locksmith, with a new battery. Works and programs just like OEM new. Comes in a logo case when we have one, otherwise a new case without the logo.

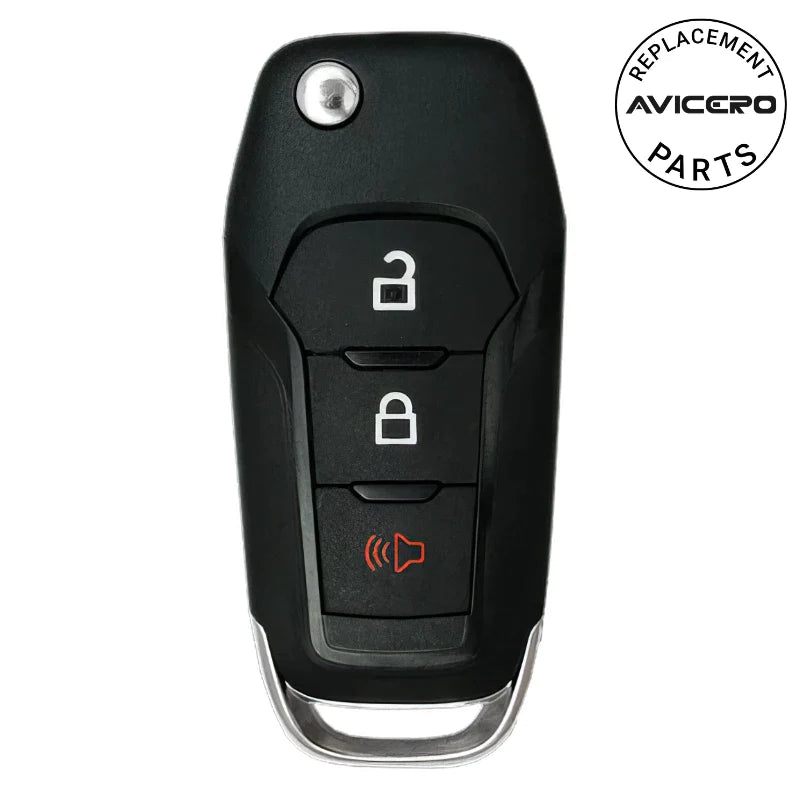

- Aftermarket New: a new copy built to the same spec, without the car maker’s logo. The lowest price.
Do I need to program it, and how much does that cost?
Yes, a new key or remote has to be programmed to your car before it works. How depends on the year and trim: on some you do it yourself at the car with a short sequence of key turns and button presses (the steps come with it, no tool, no cost); on others a locksmith or dealer connects a programming tool. Send us your VIN and we’ll tell you which before you buy.
Will my old keys still work?
Bring every key you want to keep using when the new one is programmed. On many cars programming clears any key that isn’t there at the time.
What if it doesn’t work with my car?
Call us first. Most problems are solved on the phone. If the part doesn’t fit or won’t program to your car, you can return it within 30 days. See our return policy.
How fast will I get it?
In-stock orders placed by 3 pm ET on a business day ship the same day from New Jersey, with tracking. Shipping options and prices are shown at checkout before you pay.
Specifications
- Part number
- 164-R8130, 5923667
- FCC ID
- N5F-A08TAA
- Buttons
- 3 (Lock, Unlock, Panic)
- Frequency
- 315 mhz
- RF transmission
- Rolling Code (315 MHz ASK)
- Transponder chip
- 4D63 80-bit
- Blade
- High Security
- Battery
- CR2032
- Remote programming
- You can do it, no tools
- Key programming
- You can do it with 2 working keys
The part number and FCC ID are printed on the back or inside your current remote. Match either one and it’s the right part.
About this part
Factory FlipKey Remote with FCC ID N5F-A08TAA.
The Ford part number is 164-R8130.
The Strattec part number is 5923667.
This remote has 3 buttons, tested and guaranteed to work. An automotive locksmith required for remote programming and key cutting.
Programming Procedure:
Only use integrated keyhead transmitters or standard SecuriLock_ keys. You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See your authorized dealer to have the spare key programmed if two previously programmed coded keys are not available.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off, insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six seconds.
9. Remove the newly programmed coded key from the ignition. If the key has been successfully programmed it will start the engine and operate the remote entry system (if the new key is an integrated keyhead transmitter). If it was not programmed successfully, wait 10 seconds and repeat Steps 1 through 8. If you are still unsuccessful, bring your vehicle to your authorized dealer.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Ford EcoSport (2018-2020), Ford Escape (2020), Ford Explorer (2016-2017), Ford F-150 (2015-2020), Ford F-250 Super Duty (2015-2020), Ford F-350 Super Duty (2015-2020).
How to program it: Programming Procedure #320
You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See an automotive locksmith to have the spare key programmed if two previously programmed coded keys are not available.
You can program a maximum of eight coded keys to your vehicle. All eight can be integrated keyhead transmitters. You can program your own integrated keyhead transmitter or standard SecuriLock coded keys to your vehicle. This procedure will program both the vehicle immobilizer keycode and the remote entry portion of the remote control to your vehicle.
Read and understand the entire procedure before you begin:
- Insert the first previously programmed coded key into the ignition.
- Switch the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
- Switch the ignition off and remove the first coded key from the ignition.
- After three seconds but within 10 seconds of switching the ignition off, insert the second previously coded key into the ignition.
- Switch the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
- Switch the ignition off and remove the second previously programmed coded key from the ignition.
- After three seconds but within 10 seconds of switching the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
- Switch the ignition from off to on. Keep the ignition on for at least six seconds.
- Remove the newly programmed coded key from the ignition.
