Description
FCC ID : HYQ4AA
Replaces Part Number : 13532390, 13508417
Brand : Avicero
Condition : Brand New Aftermarket (No Logo)

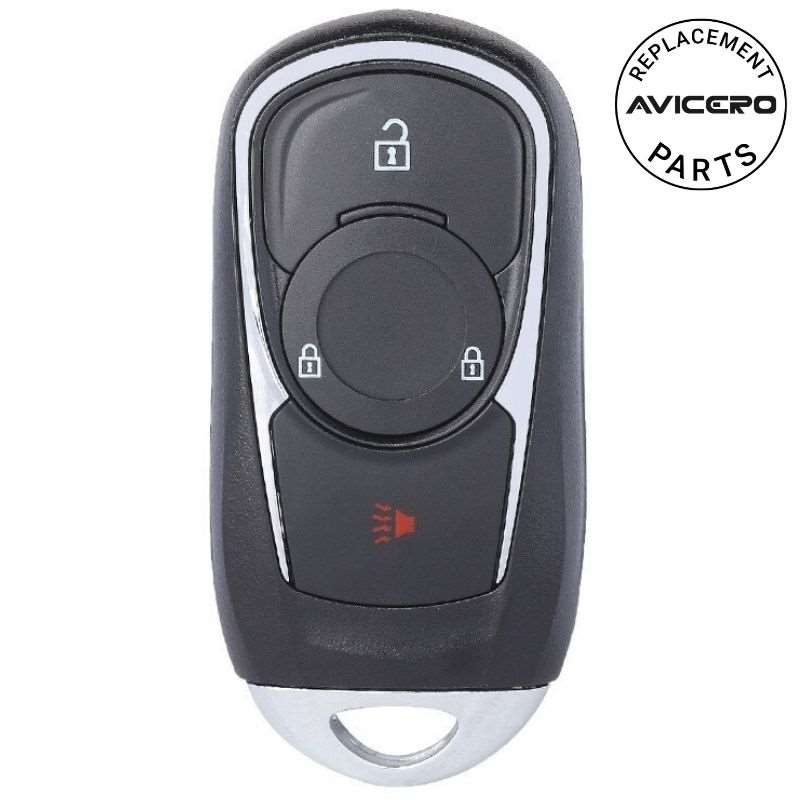

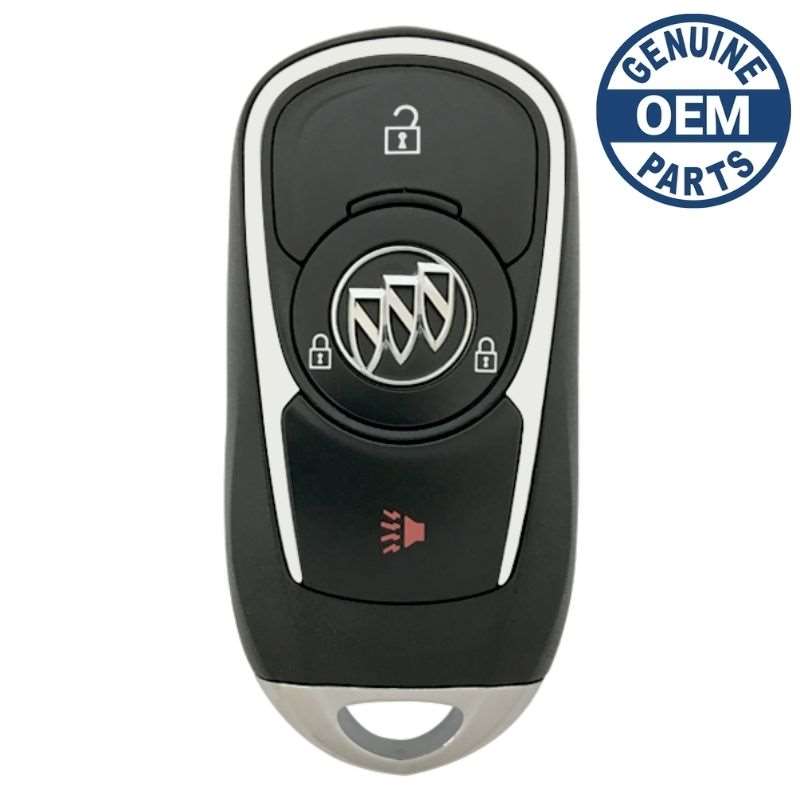

This remote features 3 buttons: Lock, Unlock, Panic. This remote sends it's signals on a frequency of 315Mhz. This remote will work for your vehicle if your vehicle is equipped with factory smart keyless entry.
Programming Procedure:
Programming with recognized transmitters:
A new transmitter can be programmed to the vehicle when there are two recognized transmitters. To program, the vehicle must be off and all of the transmitters, both currently recognized and new, must be with you.
1. Place the two recognized transmitters in the center console front cupholder.
2. Insert the vehicle key of the new transmitter into the key lock cylinder on the outside of the driver's door and turn the key to the unlock position five times within five seconds.
The Driver Information Center (DIC) displays READY FOR REMOTE #2, 3, 4 or 5.
3. Remove the two recognized transmitters from the center console front cupholder.
4. Place the new transmitter in the front cupholder.
5. Press ENGINE START/STOP. When the transmitter is learned, the DIC will show that it is ready to program the next transmitter.
6. Remove the transmitter from the transmitter pocket and press unlock.
To program additional transmitters, repeat steps 4-6.
When all additional transmitters are programmed, press and hold ENGINE START/STOP for 10 seconds to exit programming mode.
Programming without recognized transmitters:
If two currently recognized transmitters are not available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all of the transmitters to be programmed must be with you.
1. Insert the vehicle key of the transmitter into the key lock cylinder on the outside of the driver's door and turn the key five times within 10 seconds.
The Driver Information Center (DIC) displays REMOTE LEARN PENDING WAIT.
2. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press ENGINE START/STOP.
The DIC will again show REMOTE LEARN PENDING, PLEASE WAIT.
3 Repeat step 2 two additional times. After the third time, all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps.
The DIC display should now show READY FOR REMOTE #1.
4. Place the new transmitter in the front cupholder.
5. Press ENGINE START/STOP.
When the transmitter is learned, the DIC will show that it is ready to program the next transmitter.
6. Remove the transmitter from the cupholder and press unlock.
To program additional transmitters, repeat steps 4-6.
When all additional transmitters are programmed, press and hold ENGINE START/STOP for 10 seconds to exit programing mode.
You will need key cutting and you can use the website listed to find a local licensed automotive locksmith: autolocksmithfinder.com
The following vehicles can use this remote when equipped with the factory keyless entry system:
Buick Encore (2017-2020) .
