Description
When there aren't 2 working keys to use to initiate programming, an automotive locksmith is required for programming. If there are two keys already working with the vehicle, this can be programmed with an easy to use customer programming procedure.
Remote For Ford:

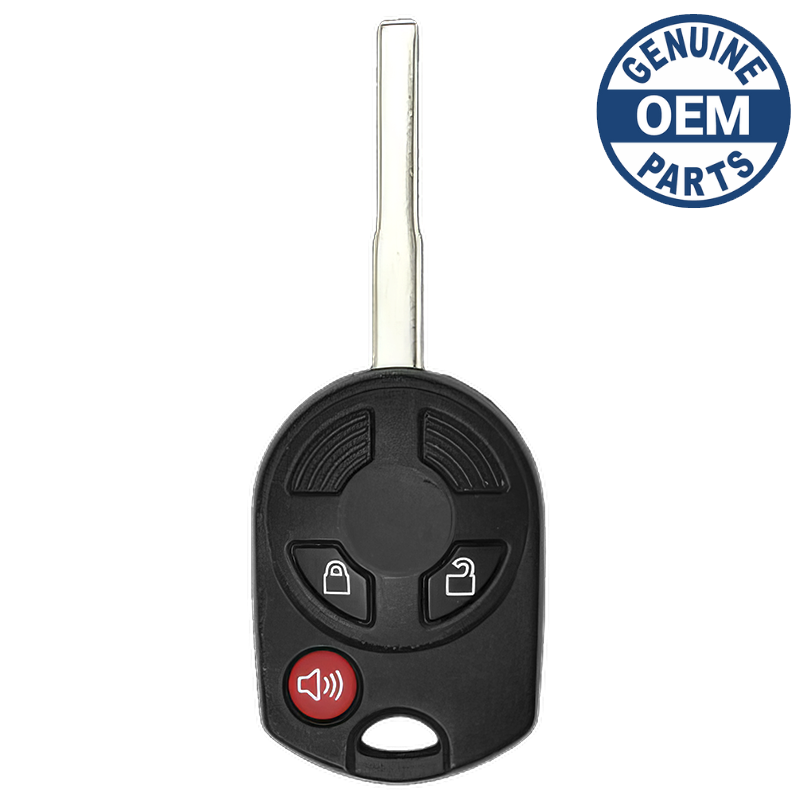

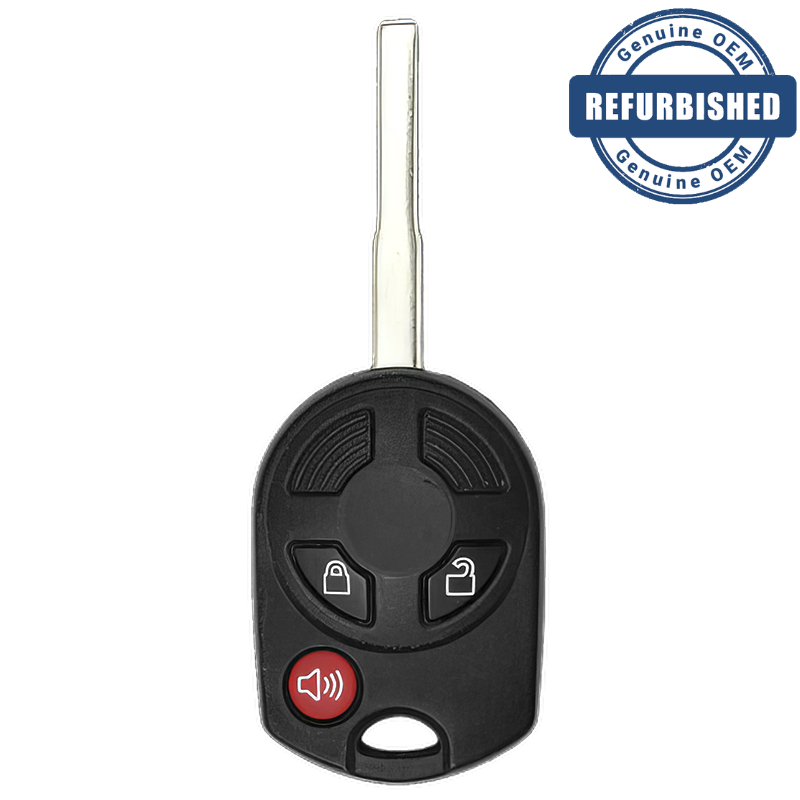

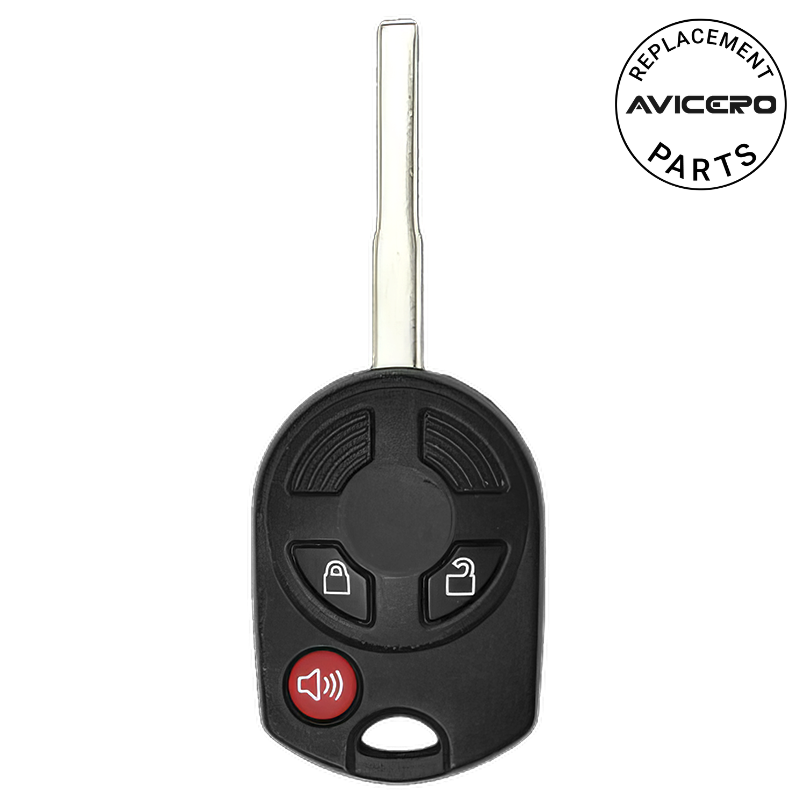

Factory Remote Head Key with FCC ID OUCD6000022.
The Ford part number is 164-R8007.
The Strattec part number is 5921707.
This remote has 3 buttons and transmits it's signals on a frequency of 315mhz. Remote is tested and guaranteed to work.
Programming Procedure:
For Ford Transit Connect (2014-2019):
1. Insert an existing key into the ignition.
2. Turn the ignition to ON (RUN) and back to OFF.
3. Remove the existing key and within 5 seconds insert the other existing key and turn it to ON (RUN) then back to OFF.
4. Insert the new key before 10 seconds have elapsed, and turn it to ON (RUN). Leave it ON for 1 second and turn back to OFF.
5. The security light will light up for 3 seconds to indicate programming has been successful.
For Ford Escape (2013-2019):
Programming a Spare Integrated Keyhead Transmitter Note: A maximum of eight coded keys can
be programmed to your vehicle; all eight can be integrated keyhead transmitters.
- You can program your own integrated keyhead transmitter or standard SecuriLock_ coded keys to your vehicle. This procedure will program both the engine immobilizer keycode and the remote entry portion of the remote control to your vehicle.
- Only use integrated keyhead transmitters or standard SecuriLock_ keys. You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See your authorized dealer to have the spare key programmed if two previously programmed coded keys are not available.
Read and understand the entire procedure before you begin.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off, insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six seconds.
9. Remove the newly programmed coded key from the ignition. If the key has been successfully programmed it will start the engine and operate the remote entry system (if the new key is an integrated keyhead transmitter). If it was not programmed successfully, wait 10 seconds and repeat Steps 1 through 8. If you are still unsuccessful, bring your vehicle to your authorized dealer.
Wait 20 seconds and then repeat this procedure from Step 1 to program an additional key.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Ford Escape (2013-2019), Ford Transit Connect (2014-2019).
