Description

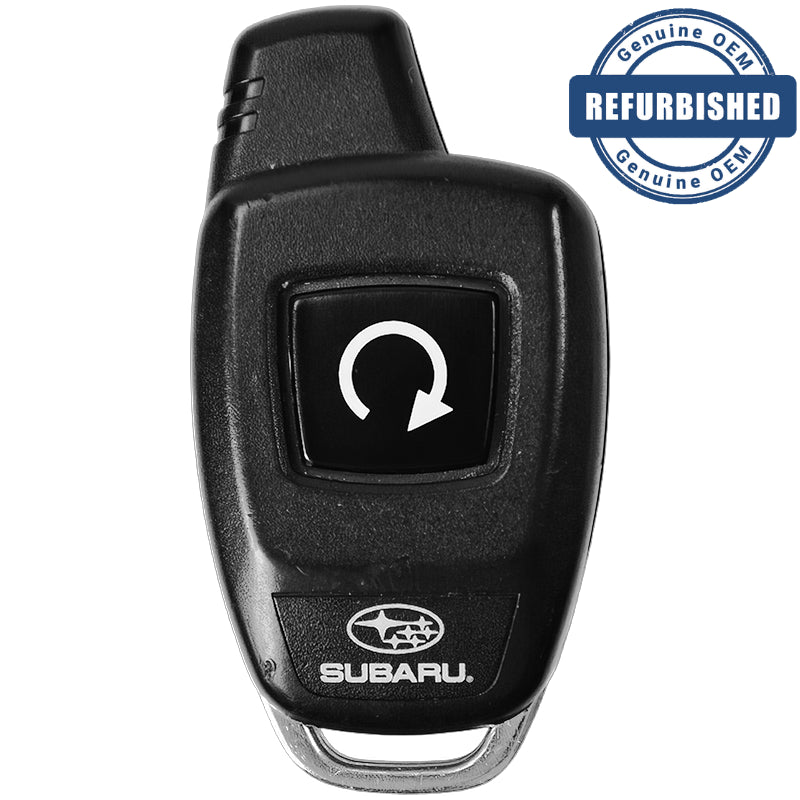

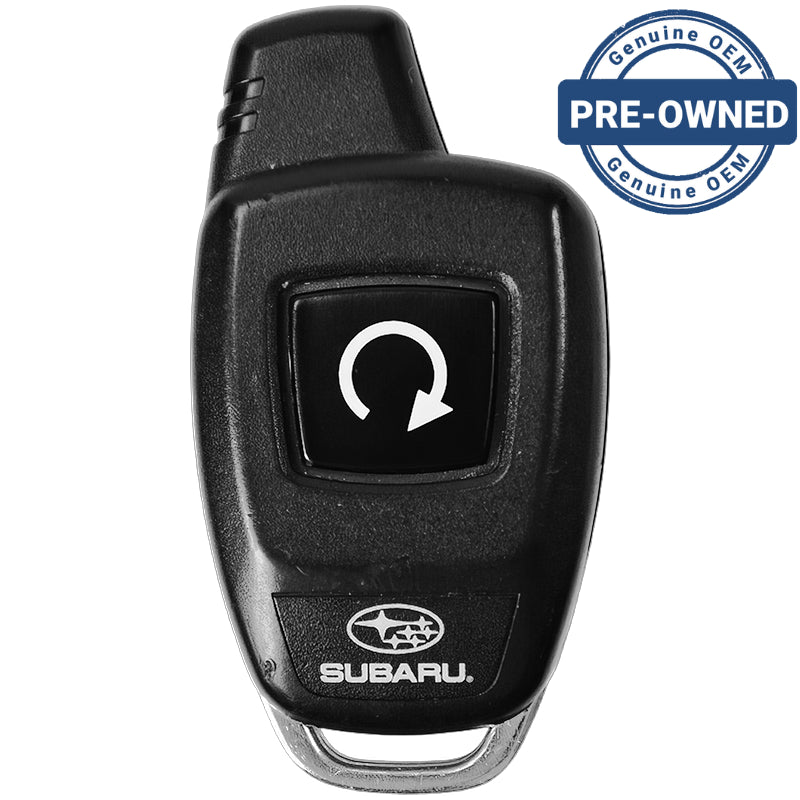

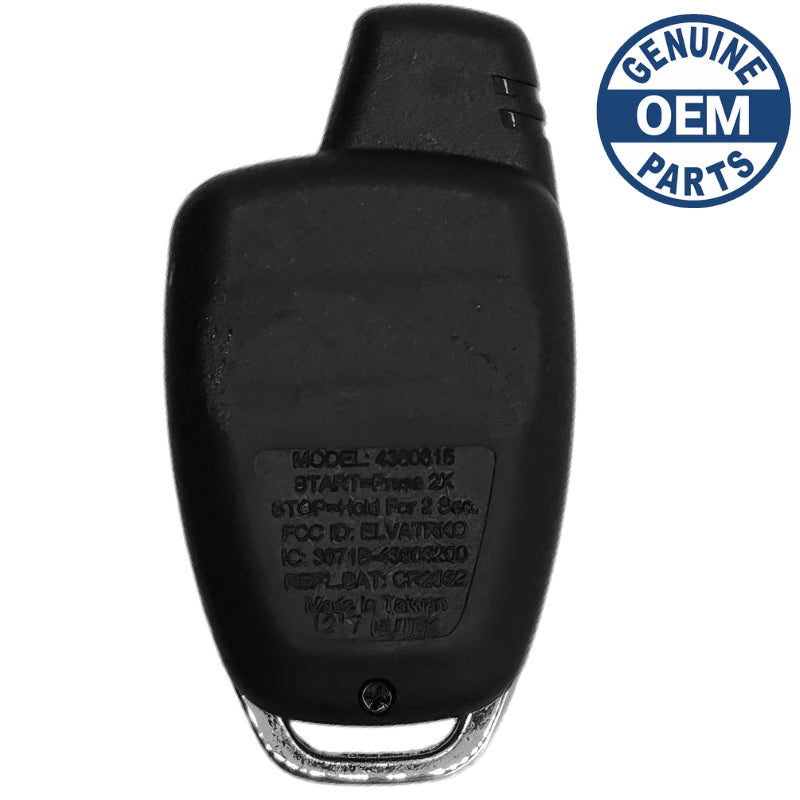

Remote For Subaru:
This remote features 1 remote start button with FCC ID ELVATRKC and Part numbers: H001SSG461, H001SAJ030, H001SFJ460, H001SSG060 and H001SSG460. This remote works on vehicles equipped with these Subaru dealership remote starters: H001SAL000 and H001SSG101.
Programming Procedure:
1. Enter the vehicle, and turn the ignition switch to the ON position.
2. Press and release the programming button 3 times.
3. Press and hold the button of the transmitter you wish to program for 3 seconds, or until the parking lights flash one time, indicating the transmitter has been programmed to the system.
4. Repeat step 3 for each transmitter up to a total of 4.
NOTE: It is important to remember that during programming, each individual step of the procedure must be executed within 15 seconds of the previous step. When the 15 seconds time is allowed to expire, the system will automatically terminate the programming mode. Additionally, the system will store codes from up to 4 different transmitters. If a 5th transmitter is programmed to any receiver channel, then the first transmitter programmed to that channel will be erased from the system's memory.
The following vehicles can use this remote when equipped with the factory keyless entry system:
(2014-2016) Subaru Crosstrek, (2014-2017) Subaru Forester.
