Description
When there aren't 2 working Smart Key Remote to use to initiate programming, an automotive locksmith is required for programming. But if you have two Smart Key Remotes that are already working with the vehicle, this can be programmed using an easy to follow customer programming procedure.
Remote For Lincoln:

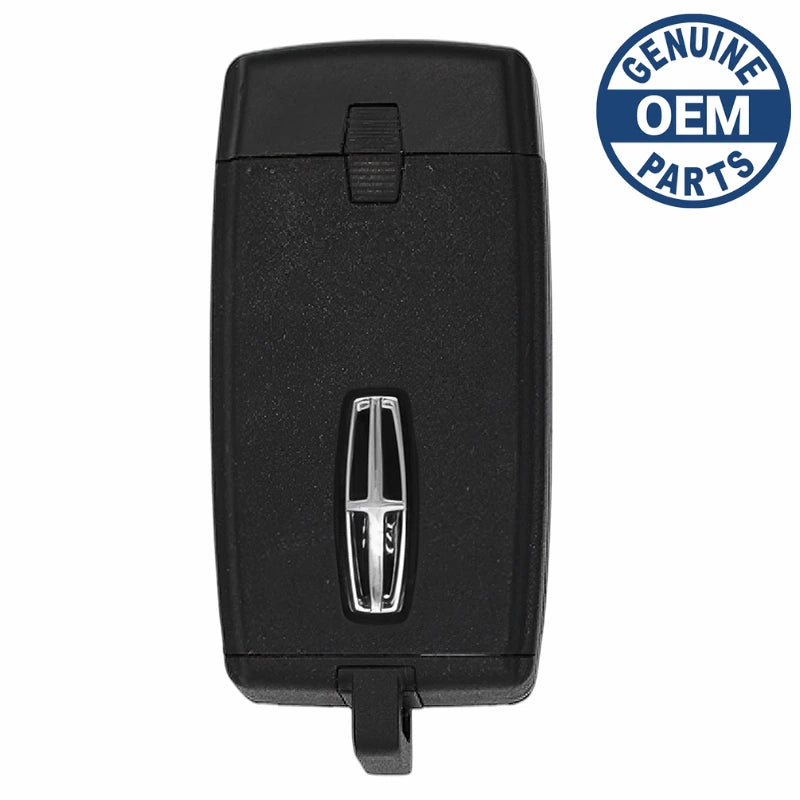

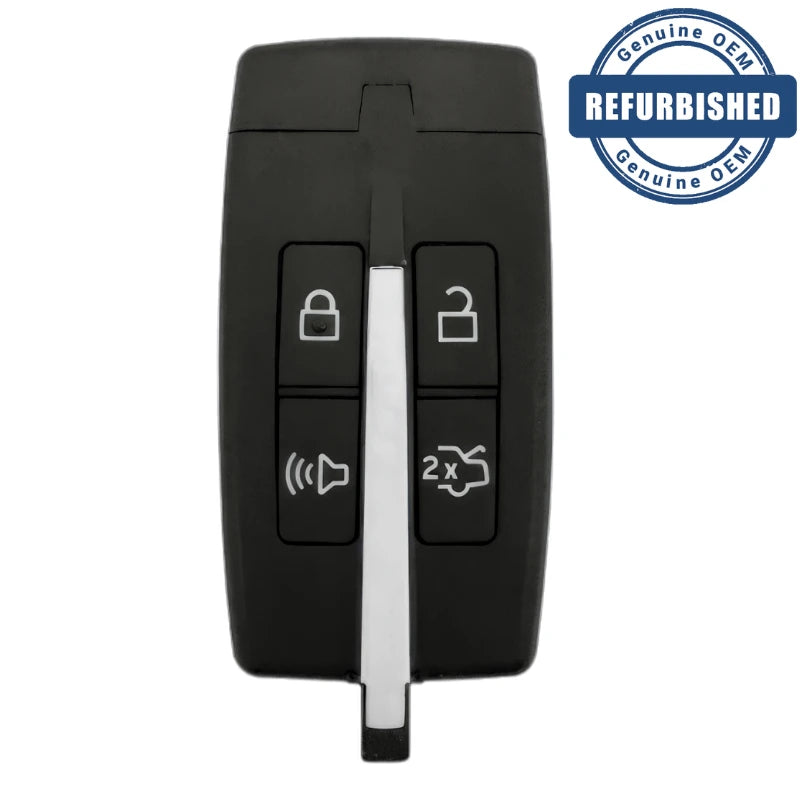

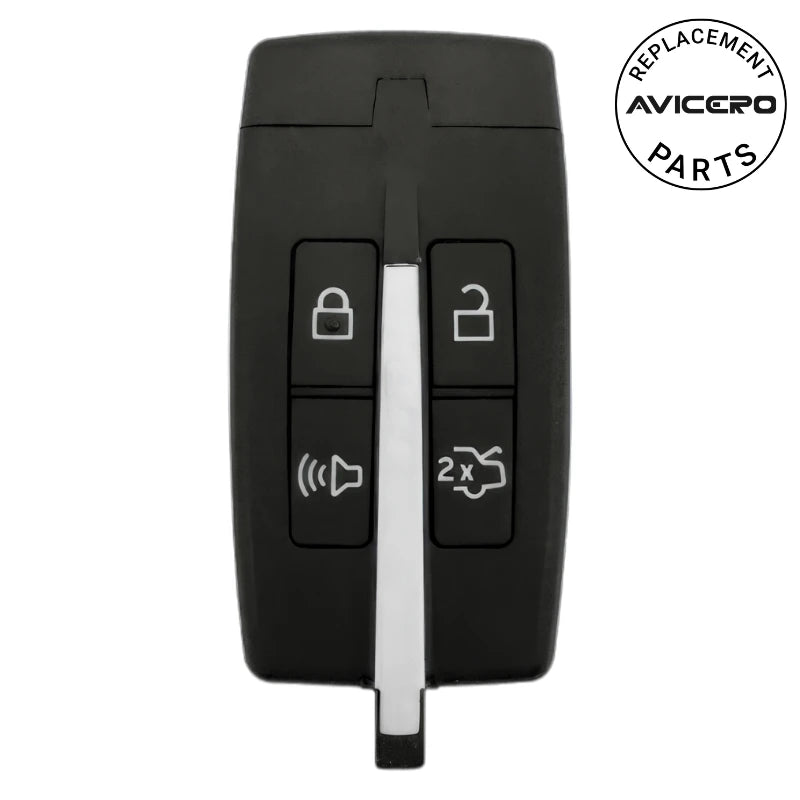

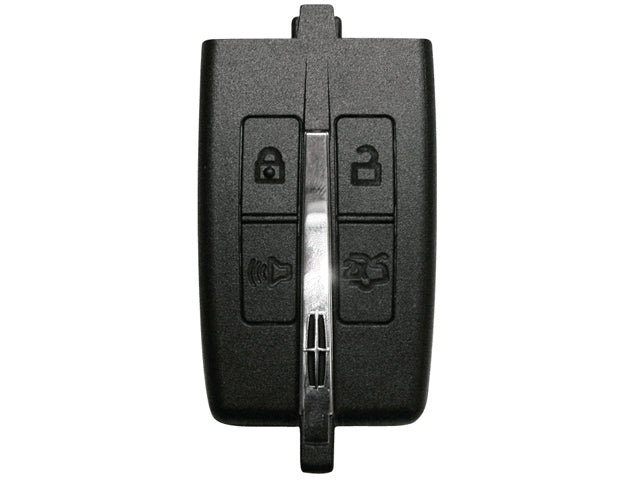

Factory Keyless Entry Smart Key transmitter with FCC ID M3N5WY8406. The Ford part number is 164-R7032 or AA5T-15K601-AA. The Strattec part number is 5912477 or 7012479. This remote has 4 buttons, tested and guaranteed to work.
Programming Procedure:
- You must have two previously programmed intelligent access keys inside the vehicle and the new un-programmed intelligent access keys readily accessible. You must take your new un-programmed intelligent access key if two previously programmed remotes are not available.
- Ensure that the vehicle is OFF, all doors are closed and all doors remain closed throughout the procedure. Perform the steps exactly described below and within 30 seconds of starting sequence. If any steps are performed out of sequence, stop and wait at least one minute before doing it again.
Please read and understand the entire procedure before you begin.
1. Place the new un-programmed intelligent access key in the pocket inside the center console utility compartment.
2. Press the driver or passenger power door unlock control three times.
3. Press and release the brake pedal one time.
4. Press the driver or passenger power door lock control three times.
5. Press and release the brake pedal one time. The indicator on the Start/Stop button should begin to rapidly flash, indication that the programming mode has been successfully activated and two previously programmed remotes have been detected in the vehicle.
6. Within one minute, press the start/stop button. A message will be displayed on the message center indicating that the new Intelligent Access Key was programmed.
7. Remove the Intelligent Access Key from utility compartment pocket and press the unlock or lock control on the newly programmed intelligent access keys to exit programming mode.
8. Verify that the remote entry functions operate (lock, unlock) and that the vehicle starts with new Intelligent Access Key.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Lincoln MKT (2010-2012), Lincoln MKS (2009-2012).
