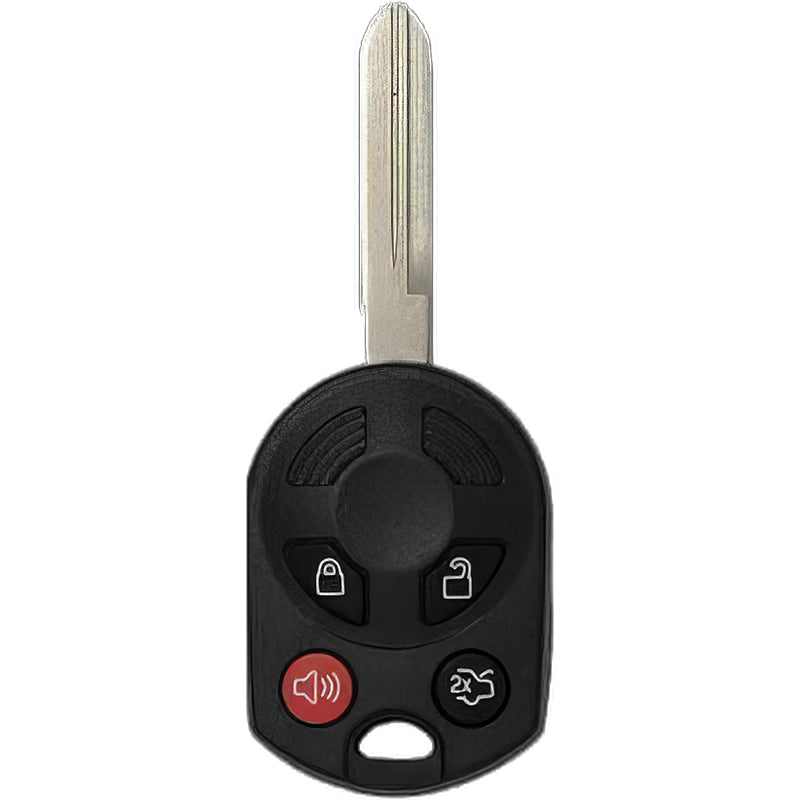

2009 Ford Edge Remote Head Key PN: 164-R7013

2009 Ford Edge Remote Head Key PN: 164-R7013

OEM Refurbished
$59.95
Skip to product information
2009 Ford Edge Remote Head Key PN: 164-R7013
1/2
  • 2009 Ford Edge Remote Head Key PN: 164-R7013

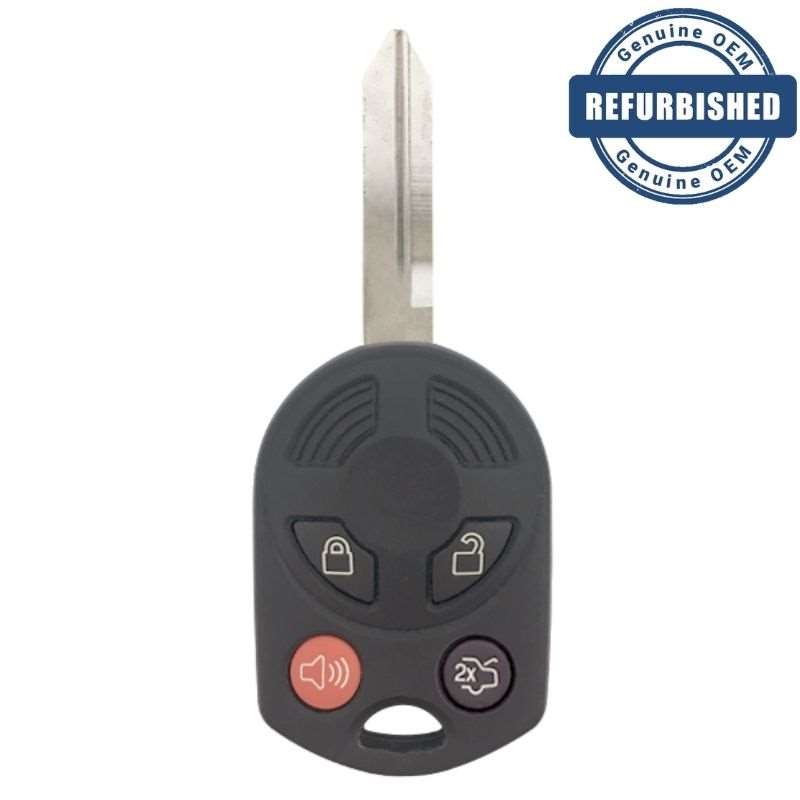

  • PN: 164-R7013
2009 Ford Edge Remote Head Key PN: 164-R7013

2009 Ford Edge Remote Head Key PN: 164-R7013

4.3 out of 5 · 1165 store reviews

$59.95
Shipping calculated at checkout.

Is this your key?

  • Part number 164-R7013. Match it to the number on the back of your key or inside the battery cover. Keys that look alike can have different numbers.
  • Key with buttons. You turn the key to start. The buttons are on the key head.
Condition
Condition
  • Usually far less than the dealer charges. The price is for the part; programming is done separately.
  • Must be programmed to your car by a locksmith or dealer. We suggest a locksmith: usually faster and cheaper than the dealer. Find a locksmith near you
  • Battery CR2032, installed.
On your registration, insurance card, or the driver-side dash. Questions? 386-586-3650

In stock in New Jersey · ships same day by 3 pm ET

  • One part number per listing. What you order is the manufacturer part number shown, not a look-alike with the same FCC ID.
  • 30-day returns. Return policy
  • Ships from our New Jersey warehouse with tracking. Shipping options

What happens after you order

  1. We check it and ship it. We pick your part by its part number and ship it from our New Jersey warehouse, with tracking. Added your VIN? We check the part against your car first and contact you if anything doesn’t match.
  2. A locksmith or dealer programs it to your car. There is no do-it-yourself sequence for this one: it needs a programming tool plugged into the car. An automotive locksmith usually costs less than the dealer and often comes to you. Programming isn’t included in our price, so ask for a quote first. What to say when you call: “I have a new 2009 Ford Edge Remote Head Key, part number 164-R7013. I need it programmed to my car and the key cut. How much, and when can you do it?” Find an automotive locksmith near you
  3. Get the key cut. The metal blade comes uncut, so a locksmith cuts it to match your locks. It’s usually done in the same visit as programming.
  4. Done. Still stuck? We help. Call 386-586-3650 or email help@remotesandkeys.com. If it won’t work with your car you have 30 days to return it.

Questions before you buy

How do I know this fits my car?

Look at the back of your current key with buttons, or inside the battery cover. If the part number (164-R7013) or the FCC ID printed there matches the one in the specifications on this page, it’s the right part.

Lost your key, or can’t read it? Type your VIN when you order and we check it before we ship. Your VIN is on your registration, insurance card, or the driver-side bottom of the windshield.

Which condition should I choose?

All conditions do the same job in your car: same buttons, programmed the same way. The difference is how it looks and what it costs.

  • OEM Refurbished: genuine part, restored and tested by a locksmith, with a new battery. Works and programs just like OEM new. Comes in a logo case when we have one, otherwise a new case without the logo.
  • OEM New: a genuine factory part from the car maker, never used. The same as the dealer’s, usually for less.
Do I need to program it, and how much does that cost?

Yes, a new key or remote has to be programmed to your car before it works. This one has no do-it-yourself sequence: a locksmith or dealer connects a programming tool to the car. Prices vary by area, so call one or two automotive locksmiths for a quote; they are usually cheaper than the dealer.

Will my old keys still work?

Bring every key you want to keep using when the new one is programmed. On many cars programming clears any key that isn’t there at the time.

What if it doesn’t work with my car?

Call us first. Most problems are solved on the phone. If the part doesn’t fit or won’t program to your car, you can return it within 30 days. See our return policy.

How fast will I get it?

In-stock orders placed by 3 pm ET on a business day ship the same day from New Jersey, with tracking. Shipping options and prices are shown at checkout before you pay.

Specifications

Part number
164-R7013, 692395
FCC ID
CWTWB1U722
Buttons
4 (Lock, Unlock, Trunk, Panic)
Frequency
315 mhz
RF transmission
Rolling Code (315 MHz ASK)
Transponder chip
4D63 40-bit
Blade
Standard
Battery
CR2032
Remote programming
Automatic once the key is programmed
Key programming
You can do it with 2 working keys

The part number and FCC ID are printed on the back or inside your current remote. Match either one and it’s the right part.

About this part

When there aren't 2 working keys to use to initiate programming, an automotive locksmith is required for programming. If there are two keys already working with the vehicle, this can be programmed with an easy to use customer programming procedure.

Remote For Ford:

Factory Remote Head Key with FCC ID CWTWB1U722.

Rotunda Part Number: 164-R7013

Ford Part Number: 8G1T-19H316-A.

Strattec Part Number: 692395

Condition: Refurbished

Brand: Ford

Chip:  TEXAS ID 4D 63 (Locked 40 Bit)

This remote has 4 buttons, tested and guaranteed to work.

Programming Procedure:

1. Insert the first previously programmed coded keys into the ignition.
2. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 3 seconds, but no more than 10 seconds.
3. Turn the ignition to the 1 (LOCK) position and remove the first coded key from the ignition.
4. Within 10 seconds of turning the ignition to the 1 (LOCK) position, insert the second previously coded key into the ignition.
5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 3 seconds, but no more than 10 seconds.
6. Turn the ignition to the 1 (LOCK) position and remove the second coded key from the ignition.
7. Within 20 seconds of turning the ignition to the 1 (LOCK) position and removing the previously programmed coded key, insert the new un-programmed key (new key/valet key) into the ignition.
8. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 6 seconds.
9. Remove the newly programmed coded key from the ignition.

If the key has been successfully programmed, it will start the vehicle?? engine and will operate the remote entry system (if the new key is an Integrated Keyhead Transmitter). The theft indicator light will illuminate for 3 seconds and then go out to indicate successful programming.

If the key was not successfully programmed, it will not start your vehicle?? engine and/or will not operate the remote entry features. The theft indicator light may flash on and off. Wait 20 seconds and you may repeat Steps 1 through 8. If the failure repeats, bring your vehicle to your authorized dealer to have the new key(s) programmed.

To program additional new un-programmed key(s), wait 20 seconds and then repeat this procedure from Step 1.

The following vehicles can use this remote when equipped with the factory keyless entry system:

Ford Taurus (2008-2011), Ford Edge (2007-2010), Ford Escape (2008-2010), Ford Flex (2009-2010), Ford Fusion (2007-2010), Ford Mustang (2010).

How to program it: Programming Procedure #PF1
Section A – (If you have two unique working keys to start the engine, then you can use the procedure below to add more yourself)
  1. Insert an existing key into the ignition.
  2. Turn the ignition to ON (RUN) and back to OFF.
  3. Remove the existing key and within 5 seconds insert the other existing key and turn it to ON (RUN) then back to OFF.
  4. Insert the new key before 10 seconds have elapsed, and turn it to ON (RUN). Leave it ON for 1 second and turn back to OFF.
  5. The security light will light up for 3 seconds to indicate programming has been successful.
Section B - (If you do not have two unique working keys that already start the engine)
Since you do not have two unique working keys to start the engine, you will need a dealer or automotive locksmith to program the vehicle to accept the new key. Please use an automotive locksmith rather than the dealer. Use the link below to locate a local automotive locksmith.
Locksmiths make their prices based on their local market as well as the cost of the equipment used for your programming/cutting. Locksmith equipment for key cutting and vehicle programming is very expensive and most of the charge is to compensate them for their initial equipment investment.
An automotive locksmith will program your new remotes or keys by hooking up an expensive scan tool to your vehicle’s diagnostic port and making the vehicle learn the new keys.
