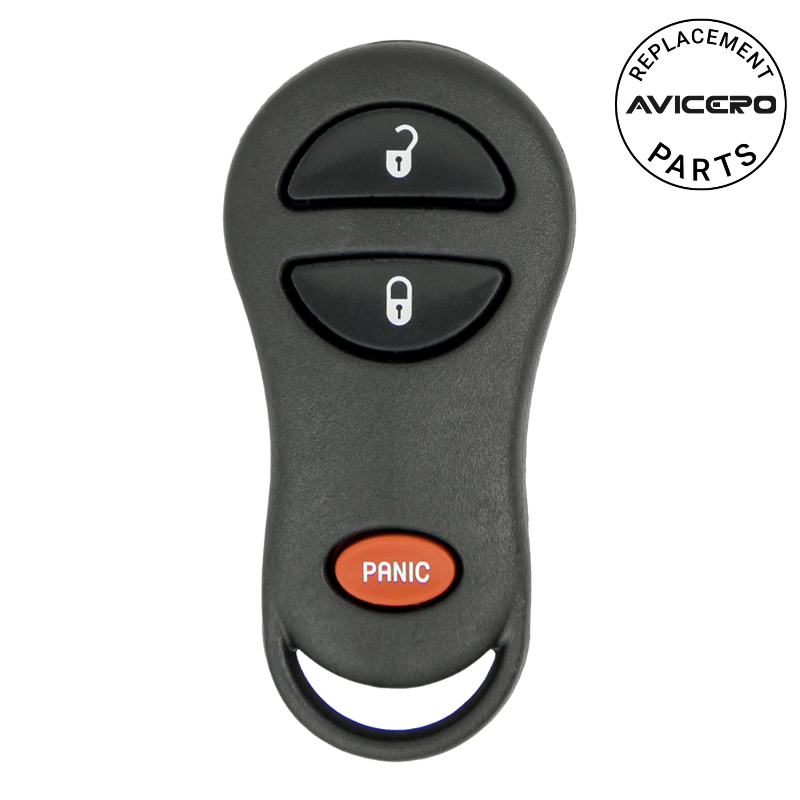

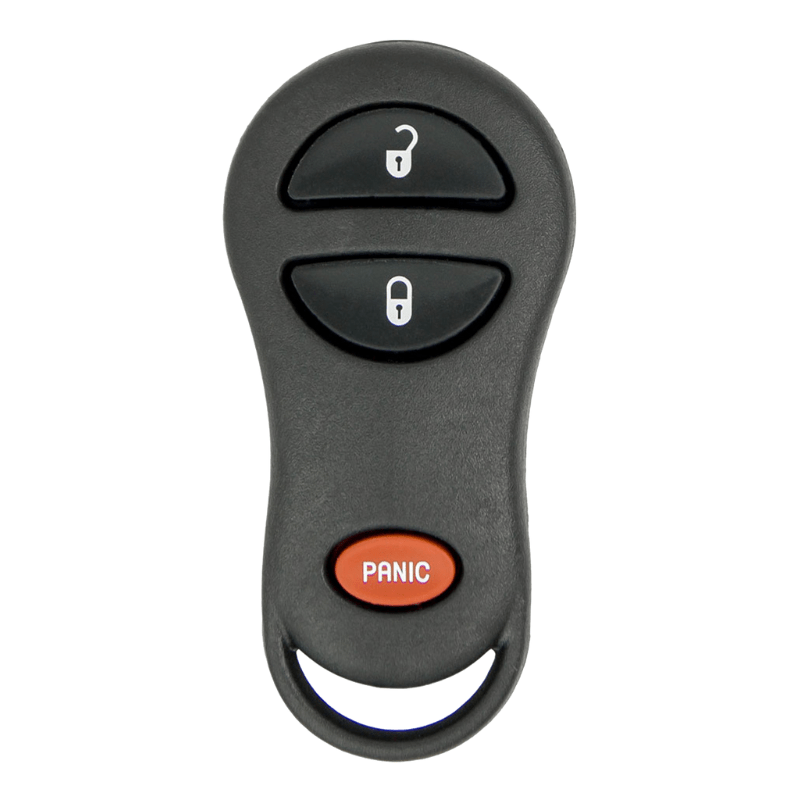

1997 Plymouth Neon Remote PN: 56036860AD

Part Numbers : 56045497AA, 56045497AB, 56045497AC, 05014736AA, 56021903AA, 56036860AC, 56036860AD, 56036860AE, 56036859AB, 56036859AC, 56036859AD, 56036859AE, 56045191AB, 56045191AC, 56045191AD

FCC ID : GQ43VT9T

Brand : Avicero

Condition : Brand New Aftermarket (No Logo)

Programming Procedure for Plymouth Prowler (1999):
1. Press the [LOCK] button 5 times on any working (programmed) transmitter at 2 second intervals to resynchronize transmitter.
2. Turn ignition to the RUN position (as far as you can go without cranking the engine). Wait for chimes to stop.
3. Using the working (programmed) transmitter, press and hold the UNLOCK button on the transmitter for between 4 and 10 seconds.
4. Within the specified 4 to 10 seconds, continue pressing the UNLOCK button and press the PANIC button (on the existing programmed remote) for 1 second and release both buttons.A chime will sound to indicate that the transmitter programming mode has been entered (allow 3 seconds for chime to sound).
5. Within 30 seconds of the chime, press and release the LOCK and UNLOCK buttons simultaneously then press and release just the UNLOCK button on the SAME transmitter. A chime will sound indicating the transmitter has been re-programmed. Repeat this step (press and release the LOCK and UNLOCK buttons simultaneously then press and release just the UNLOCK button) for each new transmitter you wish to program. A chime will sound after each additional transmitter is programmed.
6. Turn the ignition OFF and remove the keys to exit the transmitter programming mode.
7. Test each transmitter for function.
Troubleshooting: If, at the ??ress and release just the UNLOCK button??in the second line at step 5, the door locks unlock instead of give you a chime then you need to reverse steps 1 and 2.

Programming Procedure for Plymouth Neon (1997-1999):
1. Locate the keyless entry programming wire - a dark green wire with a red molded plastic connector on the end. The program wire can be found from the upper edge of the passenger side cowl trim panel.
2. Connect the program wire to a ground with suitable jumping wire to enter programming mode.
3. Turn the ignition to the ON position.
4. Press any button on the transmitter you want to program. If there is a second remote press any button on that one too.
5. Disconnect program wire from ground to exit programming mode.

Programming Procedure for Dodge Dakota (1999-2000), Dodge Durango (1999-2000), Dodge Ram Pickup (1999-2002), Dodge Caravan (1996-1998), Dodge Grand Caravan (1996-1998), Chrysler Town & Country (1996-1998), Plymouth Voyager (1996-1998):
1. Turn ignition to run position (as far as it goes without starting engine). Wait for chimes to stop.
2. Using any original (working) transmitter, press the [UNLOCK] button for 4 to 10 seconds.
3. Within the specified 4 to 10 seconds, continue pressing the [UNLOCK] button and press the [PANIC] button for 1 second and release both buttons. A chime will sound to indicate that the transmitter programming mode has been entered (allow 3 seconds for chime to sound).
4. Within 30 seconds of chime press a button on all remotes to be programmed including previously programmed remotes. A chime sounds after each remote is programmed.
5. Turn the ignition to OFF.

Programming Procedure for Dodge Ram Van (1999-2003):
1. Locate the Data Line Connector (DLC) underneath the driver?? side dashboard. The DLC is typically located either to the left or the right of the steering column base. Use the figure to the side as a map for your DLC (they usually aren?? numbered). The view in figure b, is looking straight into the cavities of the DLC. Notice how the DLC is tapered on both ends: we will be working on the wider row of cavities (1 through 8 in figure b.).
2. Make sure there are metal contact pins in terminals 1 and 4 and connect the Data Line Connector (DLC) terminal 1 to terminal 4 with a suitable jumper wire (leave the jumper wire connected throughout the programming procedure). Make sure you know which terminals are 1 and 4.
3. Insert the key into the ignition and turn to turn to ON (as far as it goes without starting the engine). The doors will automatically lock and unlock once indicating that the system is in the programming mode.
4. Press either the LOCK or UNLOCK button on the transmitter to be programmed. Upon successful programming, the door will lock and unlock once.
5. If there is a second transmitter, press the LOCK or UNLOCK button and the doors will lock and unlock once to confirm successful programming.
6. Disconnect the programming wire and remove the keys from the ignition.

The following vehicles require an automotive locksmith to program the vehicle to accept the remote: Dodge Dakota (1998), Dodge Durango (1998), Dodge Ram Pickup (1998), Dodge Viper (1993), Dodge Grand Cherokee (1996-2004), Jeep Cherokee (1999-2001)

You can find a local licensed automotive locksmith using the link below:
www.autolocksmithfinder.com

Works on:
Dodge Dacota (1998-2000), Dodge Durango (1998-2000), Dodge Ram Pickup (1998-2002), Dodge Ram Van (1999-2003), Dodge Caravan (1996-1998), Dodge Grand Caravan (1996-1998), Jeep Grand Cherokee (1996-2004), Dodge Viper (1993), Jeep Cherokee (1999-2001), Chrysler Town & Country (1996-1998), Plymouth Voyager (1996-1998), Plymouth Neon (1997-1999), Plymouth Prowler (1999)
