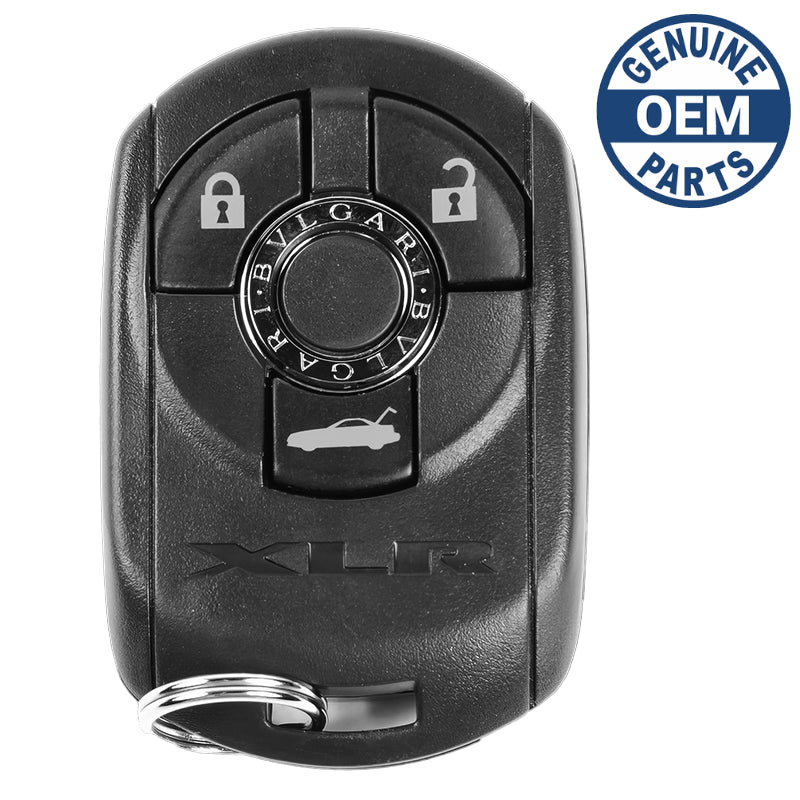

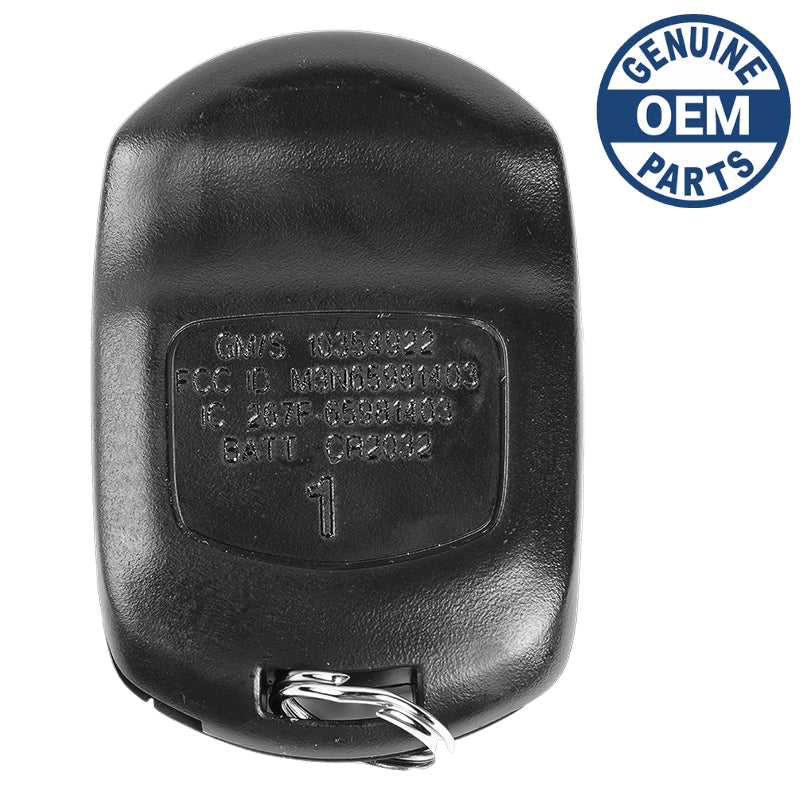

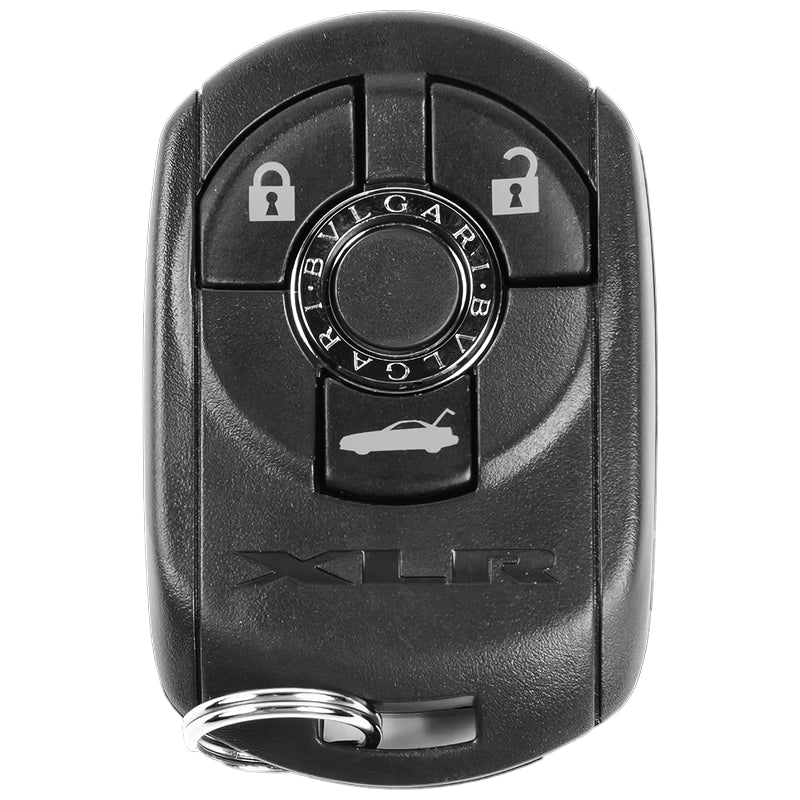

FCC ID: M3N65981403
Part Numbers: 10354922
Brand: Cadillac
Condition: OEM New
Programming Procedure:
Each vehicle can have a maximum of four transmitters matched to it.
To match a new transmitter to your vehicle when you have a recognized transmitter, do the following:
1. The vehicle must be off.
2. Have the recognized and new, unrecognized transmitters on your person.
3. Go to the rear of the vehicle and insert the vehicle key into the key cylinder located on the lower rear fascia on the driver?? side.
4. (Cadillac XLR 2004) Turn the key five times within five seconds. The trunk will open.
4. (Cadillac XLR 2005-2007) Open the trunk. Turn the key five times within five seconds.
5. The DIC will display READY FOR FOB #X, where X can be 2, 3 or 4.
6. Place the new, unrecognized transmitter in the glove box transmitter pocket with the buttons facing to the right.
7. Once the transmitter is programmed, a beep will sound. The DIC will display READY FOR #X, where X can be 3 or 4, or MAX # FOBS LEARNED.
8. Press the OFF/ACCESSORY button.
To match a new transmitter to your vehicle when you do not have a recognized transmitter, do the following:
1. The vehicle must be off.
2. Place the new, unrecognized transmitter in the glove box transmitter pocket with the buttons facing to the right.
3. Go to the rear of the vehicle and insert the vehicle key into the key cylinder located on the lower rear fascia on the driver?? side.
4. (Cadillac XLR 2004) Turn the key five times within five seconds. The trunk will open.
4. (Cadillac XLR 2005-2007) Open the trunk. Turn the key five times within five seconds.
5. The DIC message will display OFF-ACC TO LEARN.
6. Press the OFF/ACCESSORY button.
7. The DIC will read WAIT 10 MINUTES and will count down to zero, one minute at a time.
8. The DIC will display OFF-ACC TO LEARN again.
9. Press the OFF/ACCESSORY button.
10. The DIC will read WAIT 10 MINUTES and will count down to zero, one minute at a time.
11. The DIC will display OFF-ACC TO LEARN again.
12. Press the OFF/ACCESSORY button.
13. The DIC will read WAIT 10 MINUTES and will count down to zero, one minute at a time.
14. A beep will sound and the DIC will read READY FOR FOB #1. At this time, all previously known transmitters have been erased.
15. Once the transmitter is recognized and programmed, a beep will sound and the DIC will display READY FOR FOB #2.
If you have additional transmitters to program, take transmitter 1 out of the transmitter pocket and place transmitter 2 in the pocket. This can be done repeatedly until up to four transmitters have be programmed. The DIC will then display MAX # FOBS LEARNED and will exit the programming mode.
When you are done programming transmitters, press
the OFF/ACCESSORY button.
Works on:
Cadillac XLR (2004-2007)
