Descripción

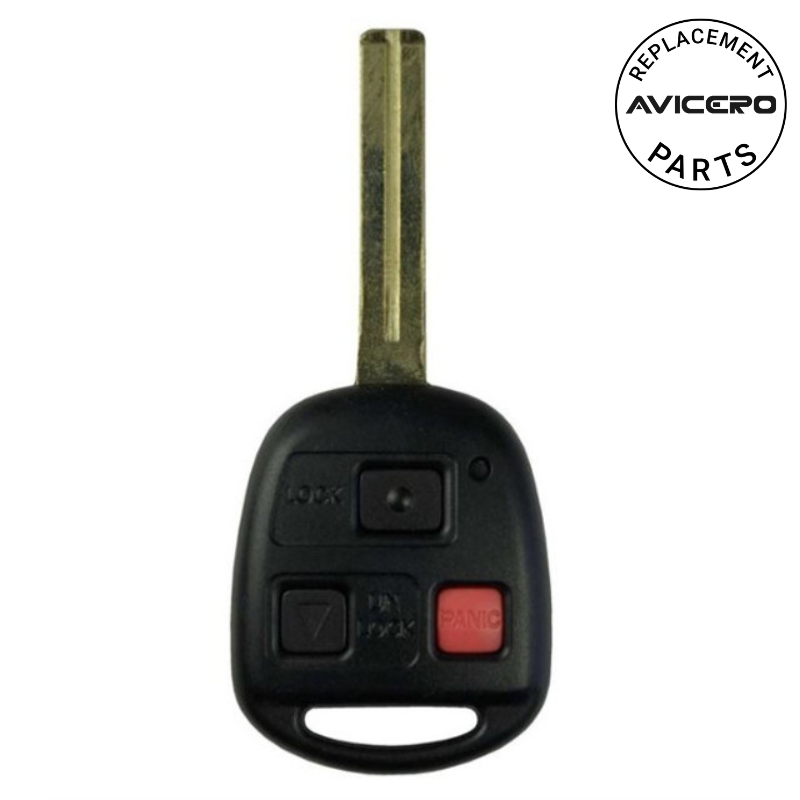

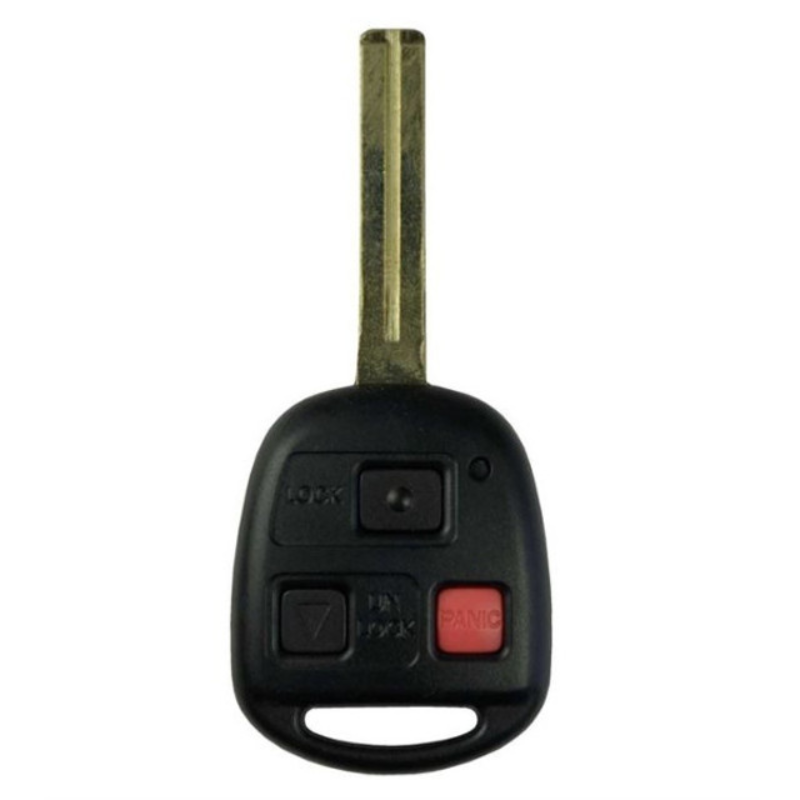

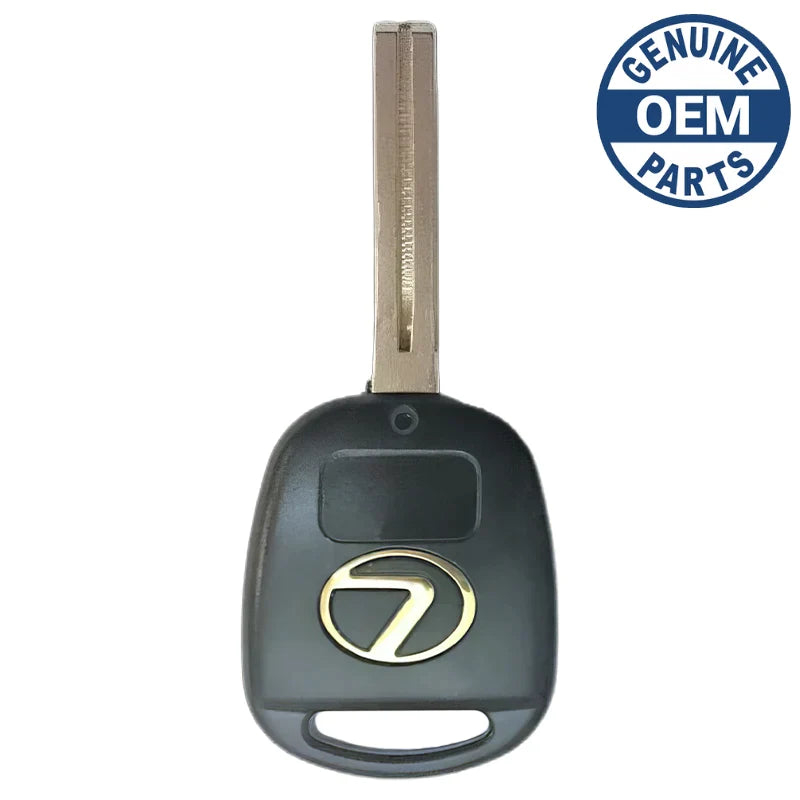

FCC ID: HYQ1512V
Part Numbers: 89070-60081
Condition: Brand New Avicero
Programming Procedure:
You will need an automotive locksmith to cut the blade to fit your locks. You can find a local licensed automotive locksmith using this website: autolocksmithfinder.com
1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is OPEN (all other doors are closed).
c. Driver door is unlocked.
2. Insert the key into the ignition (don?? turn it) and pull it out.
3. Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles
starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed
by pressing the power unlock switch on the driver?? door panel. Use an even pace and try
to go relatively fast.
b. Close then open the driver?? door.
4. Perform these steps within 40 seconds:
a. Perform 5 lock/unlock cycles again with the switch on the driver?? door starting with lock.
b. Insert the key in the ignition cylinder.
c. Turn the ignition to ON (as far as you can go without cranking your engine) then back to
OFF.
d. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating
successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the LOCK and UNLOCK buttons on the transmitter simultaneously for 1 second and
release.
b. Immediately after letting go of the lock and unlock buttons, press the LOCK button by
itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once
indicating successful programming. If the door locks cycle twice (two lock and unlock
cycles), this means your remote has not been accepted. Repeat steps 6a and 6b until the
door locks cycle only once.
c. Repeat steps 6a and 6b for each new transmitter.
7. Close the driver?? door.
8. Test transmitter(s) for function.
Works on:
Lexus LX470 (2001-2002).
