Descripción
Remote For Chevrolet:

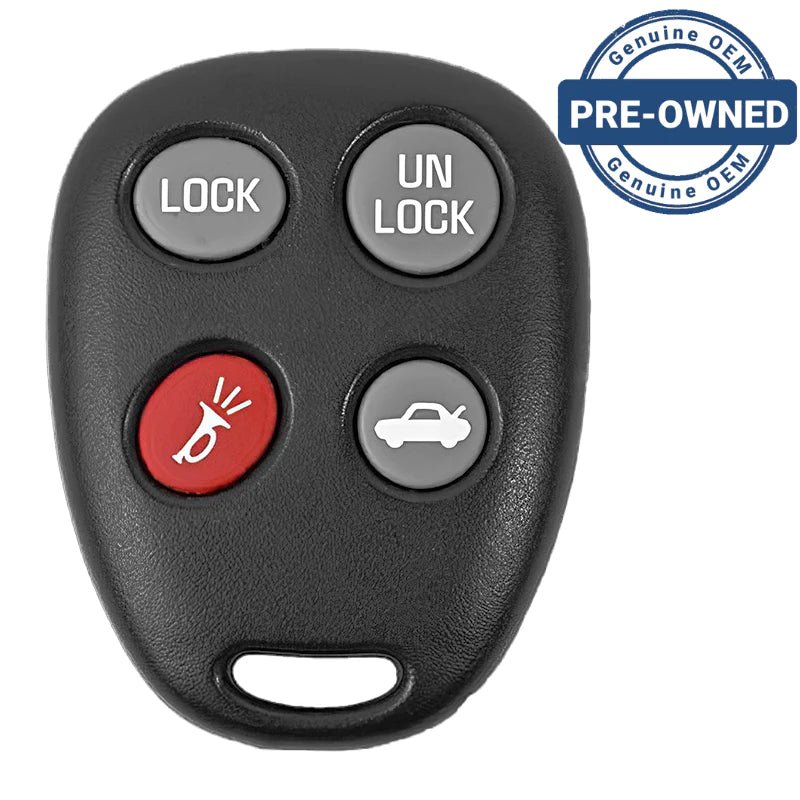

This remote currently has an FCC ID of ELVATLB but originally was made as ABOO216T. Currently the GM part number is 19299230. 10432147 and 10253839 are superceded numbers. It is interesting to note that 10253839 had a passive switch on it to turn GM's early style proximity system off when not in use. That was used from 1997-1999 Corvettes. GM discontinued that remote with the intention to use the 2000 Corvette remote as a replacement for 1997-2000.
Programming Procedure:
1. Turn the ignition to ON.
2. Make sure the radio to OFF.
3. Press the RESET button in order to clear any warning messages on the instrument panel display.
4. Press and release the OPTIONS button on the DIC several times to scroll through the display options until the instrument panel is blank.
5. Press and hold the RESET button for 2 seconds.
6. FOB TRAINING message will be displayed. Press the RESET Button once. The message HOLD LK + UNLK 1ST FOB will be displayed.
7. Simultaneously press and hold the LOCK and UNLOCK buttons on the first remote for about 5 or more seconds. The IPC will indicate when the remote is programmed and when to proceed to next remote. Repeat this for all remotes you wish to use including existing remotes.
8. Remove the key.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Chevrolet Corvette (1997-2000).
