Specifications

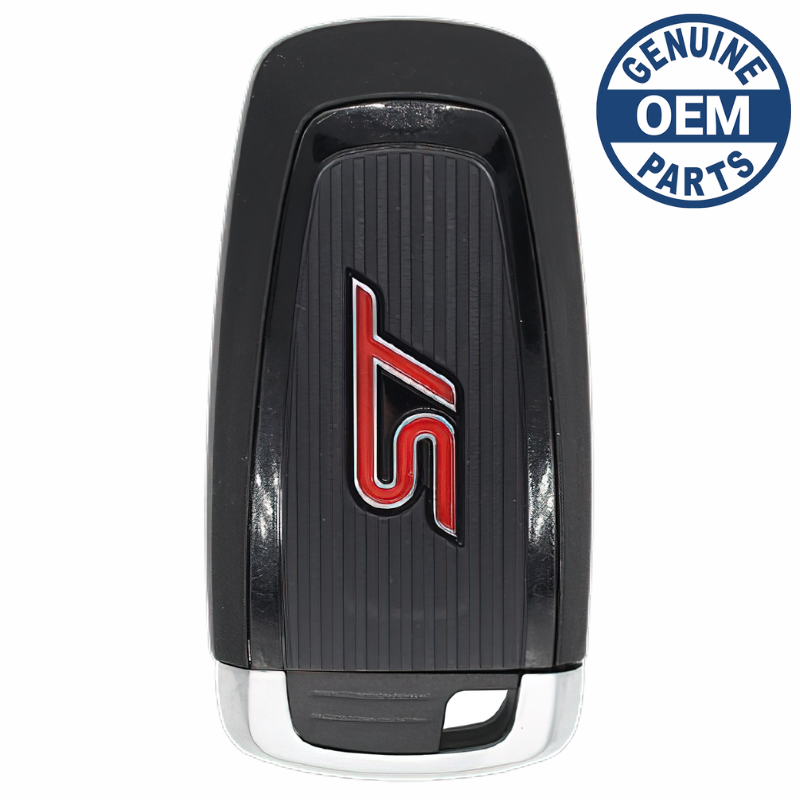

Part Numbers: 164-R8322, 5943671, and ML1T-15K601-BA-B
FCC ID: M3N-A3C054339

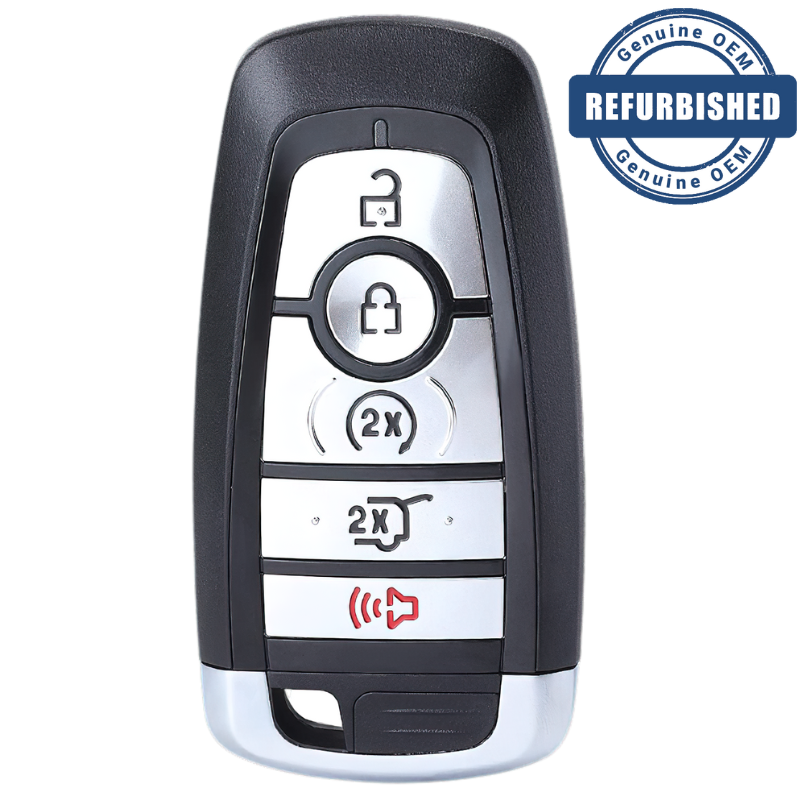

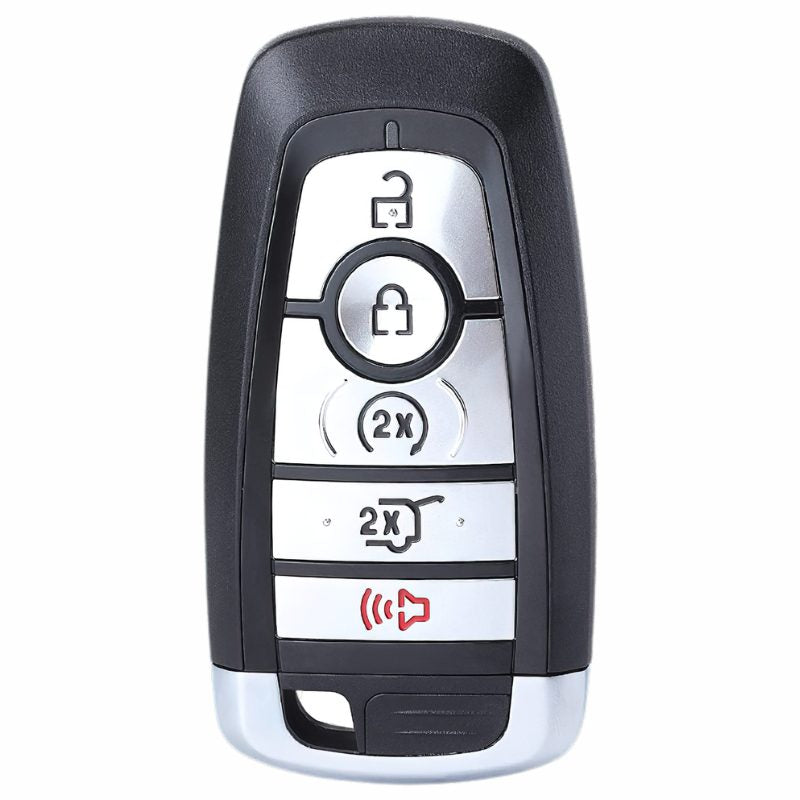

Buttons: Lock, Unlock, Hatch, Remote Start, and Panic
Frequency: 902 MHZ
Remote Programming:
Transponder Programming:
Chip ID: NXP HITAG-PRO ID49 128 Bit
Led:
Programming Procedure #321
PROGRAMMING A SPARE INTEGRATED KEYHEAD TRANSMITTER
You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See an automotive locksmith to have the spare key programmed if two previously programmed coded keys are not available. You can use the link below to locate a local licensed automotive locksmith.
www.autolocksmithfinder.com
1. Remove the key blade from the transmitter.
2. Remove the rubber covering (A) from the cup holder. With the buttons facing upward and the unlock button facing the front of your vehicle, place the first intelligent access key into the backup slot (B).
3. Press the push button ignition switch.
4. Wait five seconds and then press the push button ignition switch again.
5. Remove the intelligent access key.
6. Within 10 seconds, place a second programmed intelligent access key in the backup slot and press the push button ignition switch.
7. Wait five seconds and then press the push button ignition switch again.
8. Remove the intelligent access key.
9. Wait five seconds, then place the unprogrammed intelligent access key in the backup slot and press the push button ignition switch.
Programming is now complete. Check that the remote-control functions operate, and your vehicle starts with the new intelligent access key. If programming was unsuccessful, wait 10 seconds and repeat steps 1 through 7.
If the key has been successfully programmed it will start your vehicle and operate the remote entry system (if the new key is an integrated keyhead transmitter).
