Specifications
Part Numbers: 164-R8269 and 5939651
FCC ID: N5F-A08TAA
Buttons: Lock, Unlock, and Panic
Frequency: 315 MHZ
Remote Programming:
Transponder Programming:
Chip ID:
Led:
Description
Extended warranty is available on the checkout page.
FCC ID: N5F-A08TAA
Rotunda Part Number: 164-R8269
Strattec Part Number: 5939651
Condition: OEM New

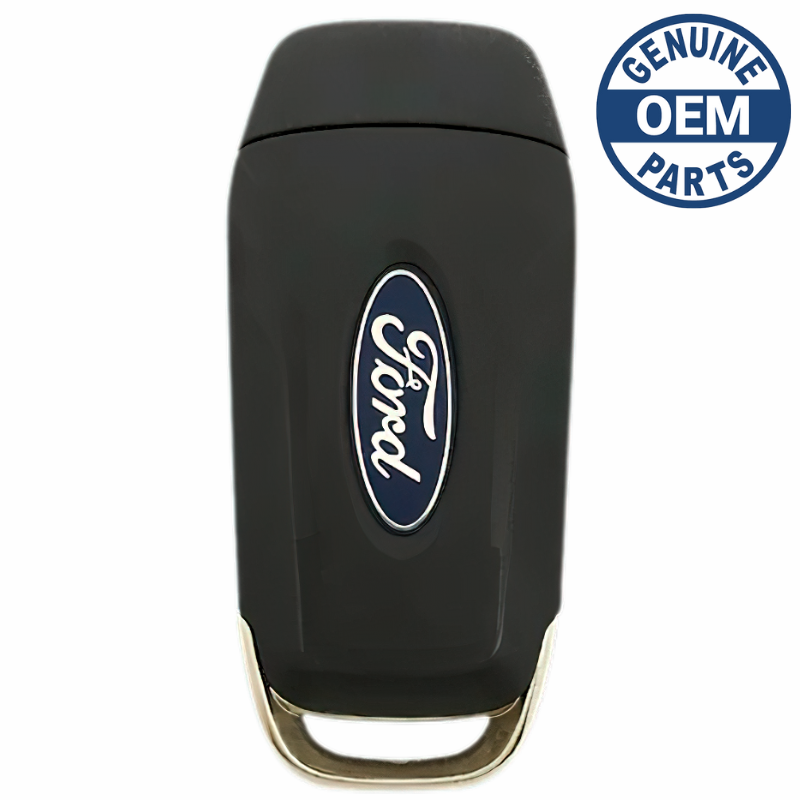

Brand: Ford

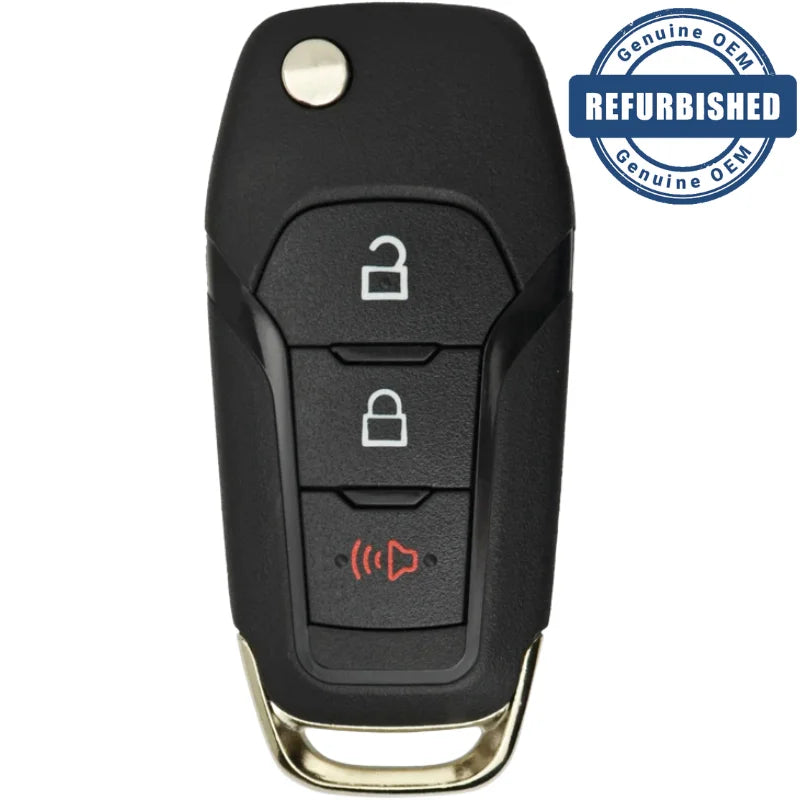

This remote has 3 buttons, tested and guaranteed to work. An automotive locksmith required for remote programming and key cutting.
Programming Procedure:
Only use integrated keyhead transmitters or standard SecuriLock_ keys. You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See your authorized dealer to have the spare key programmed if two previously programmed coded keys are not available.
- Read and understand the entire procedure before you begin.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off, insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six seconds.
9. Remove the newly programmed coded key from the ignition. If the key has been successfully programmed it will start the engine and operate the remote entry system (if the new key is an integrated keyhead transmitter). If it was not programmed successfully, wait 10 seconds and repeat Steps 1 through 8. If you are still unsuccessful, bring your vehicle to your authorized dealer.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Ford F-150 2021-2021.
Programming Procedure #Pf4
NOTES:
• This procedure works only if 2 or more programmed keys are available. If 2 programmed keys are not available, refer to Key Programming Using Diagnostic Equipment in your owner’s manual.
- Insert the first programmed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
- Turn the first key to the OFF position and remove the key from the ignition.
- Within 10 seconds of turning the key to the OFF position, insert a second programmed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
- Turn the second key to the OFF position and remove the key from the ignition.
- Within 10 seconds of turning the key to the OFF position, insert the new unprogrammed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
- If it is desired to program additional key(s) (up to a total of 8 keys can be programmed), repeat steps 1 – 5 for each additional key.
Compatibility
