Description
If there are two keys already working with the vehicle, this can be programmed via onboard procedure. When there aren't 2 existing working keys, please contact an automotive locksmith is for programming.

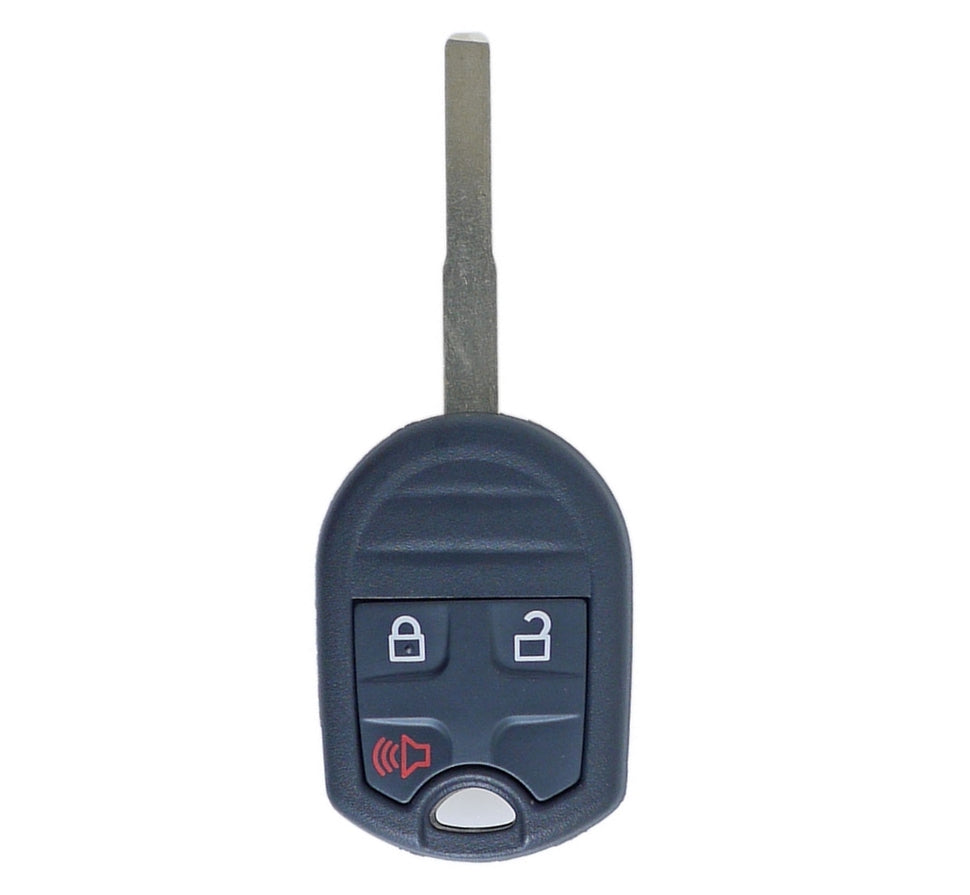

Remote For Ford:
This remote features 3 buttons: LOCK, UNLOCK and PANIC. This remote sends it's signals on a frequency of 315Mhz. This remote will work for your vehicle if your vehicle is equipped with factory keyless entry.
Factory keyless entry remote head key transmitter with FCC ID CWTWB1U793 or OUCD6000022.
The Strattec part number is 5926442.
This is tested and guaranteed to work.
Programming Procedure:
- Note: This procedure works only if 2 or more programmed keys are available. If 2 programmed keys are not available, refer to Key Programming Using Diagnostic Equipment in your owner?? manual.
1. Insert the first programmed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
2. Turn the first key to the OFF position and remove the key from the ignition.
3. Within 10 seconds of turning the key to the OFF position, insert a second programmed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
4. Turn the second key to the OFF position and remove the key from the ignition.
5. Within 10 seconds of turning the key to the OFF position, insert the new unprogrammed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
6. If it is desired to program additional key(s) (up to a total of 8 keys can be programmed), repeat steps 1 - 5 for each additional key.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Ford Fiesta (2018-2019), Ford Fiesta (2015-2017).
