Description
FCC ID: M3N-A2C31243300
Rotunda Part Number: 164-R8117
Strattec Part Number: 5926054

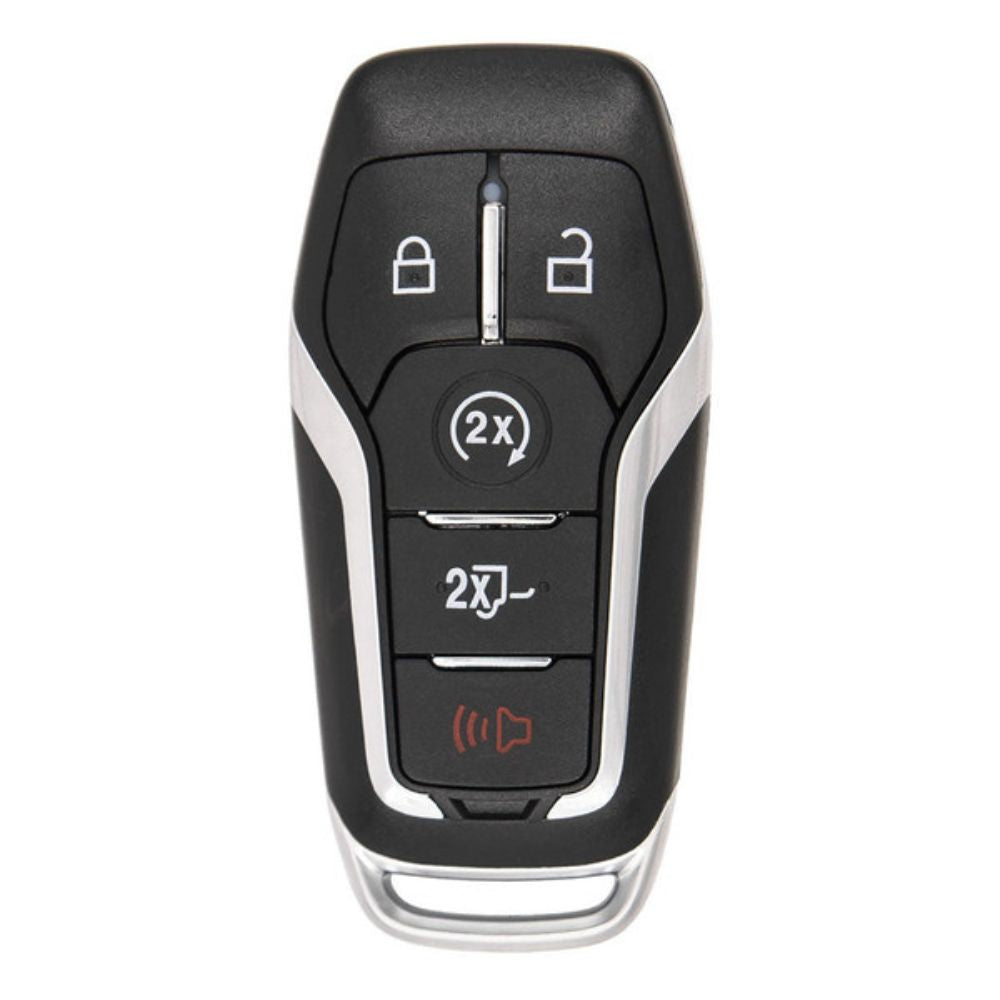

This remote has 5 buttons and transmits its signals at a frequency of 902mhz, tested and guaranteed to work.
Available Options:

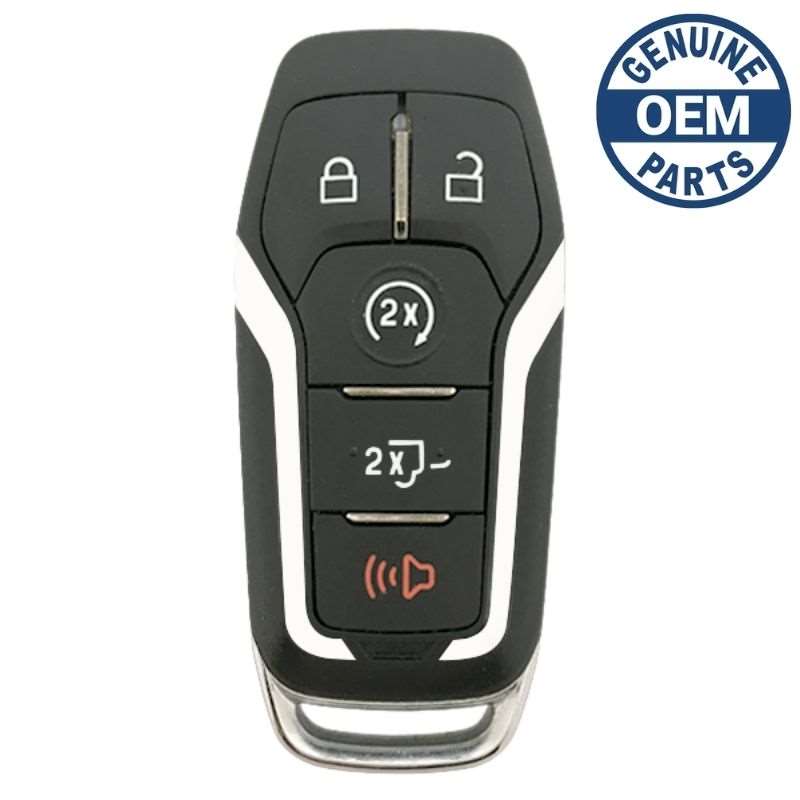

New OEM - 100% OEM remote out of the original package. might be sealed if available
Refurbished OEM - original circuit board in a new aftermarket shell if the original case condition did not meet the quality standards.

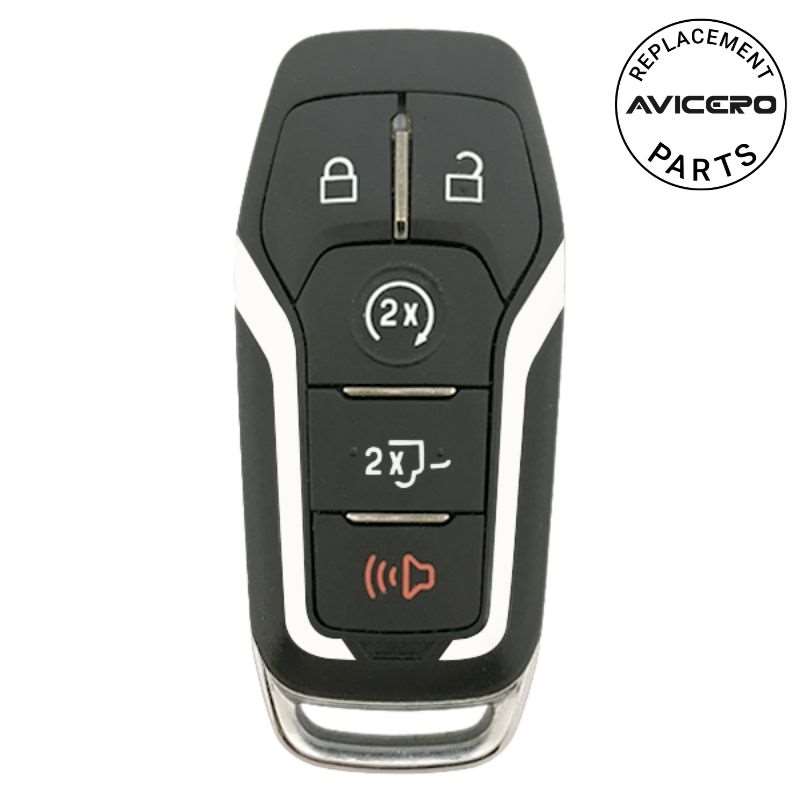

New Aftermarket - premium quality Avicero brand new aftermarket no logo replacement.
Programming Procedure:
You can program a maximum of four intelligent access keys to your vehicle. You must have two previously programmed intelligent access keys inside your vehicle and the new unprogrammed intelligent access keys readily accessible. See a qualified locksmith to have the spare key programmed if two previously programmed keys are not available. Make sure that your vehicle is off before beginning this procedure. Make sure that you close all the doors before beginning and that they remain closed throughout the procedure. Perform all steps within 30 seconds of starting the sequence. Stop and wait for at least one minute before starting again if you perform any steps out of sequence.
Read and understand the entire procedure before you begin:
1. Place the first programmed key in the backup slot (A) in the center console, then press the push-button ignition switch. Insert the first previously programmed coded key into the ignition.
2. Wait five seconds and then press the push-button ignition switch again. Switch the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
3. Remove the intelligent access key. Switch the ignition off and remove the first coded key from the ignition.
4. Within 10 seconds, place a second programmed intelligent access key in the backup slot. Press the push-button ignition switch. After three seconds but within 10 seconds of switching the ignition off, insert the second previously coded key into the ignition.
5. Wait five seconds and then press the push-button ignition switch again. Switch the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
6. Remove the intelligent access key. Switch the ignition off and remove the second previously programmed coded key from the ignition.
7. Place the unprogrammed intelligent access key in the backup slot and press the push button ignition switch. After three seconds but within 10 seconds of switching the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition. The programming is now complete. Verify the remote-control functions operate and that your vehicle starts with the new intelligent access key. If programming was not successful, wait 10 seconds and repeat Steps 1 through 7.
