Specifications
Part Numbers: 13504205, 13500227GM, and 5912555
FCC ID: V2T01080512 and OHT01060512
Buttons: Lock, Unlock, Trunk, and Panic
Frequency: 315 Mhz
Remote Programming:
Transponder Programming:
Chip ID:
Led:

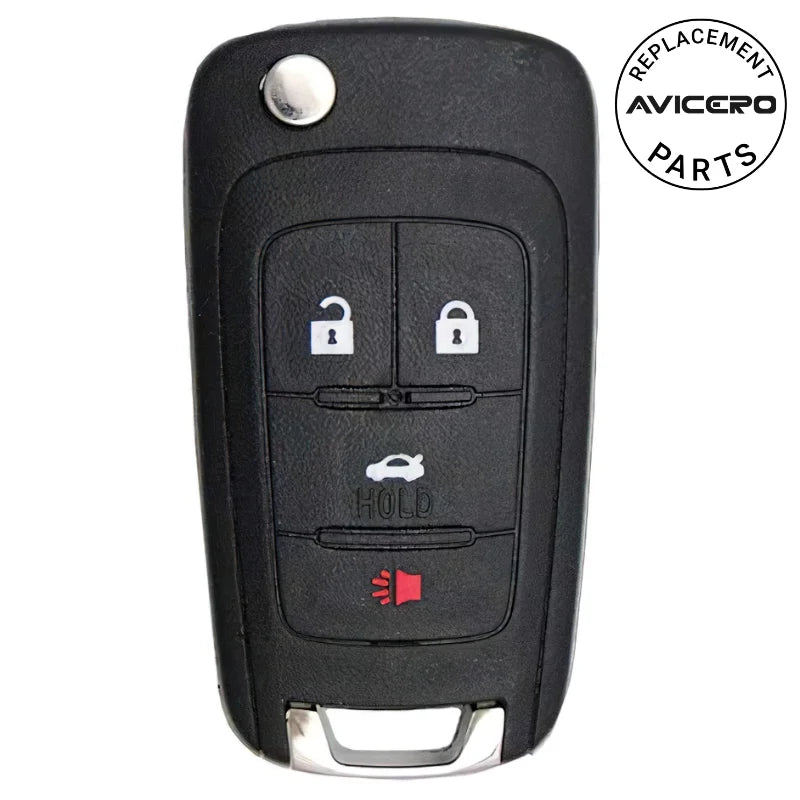

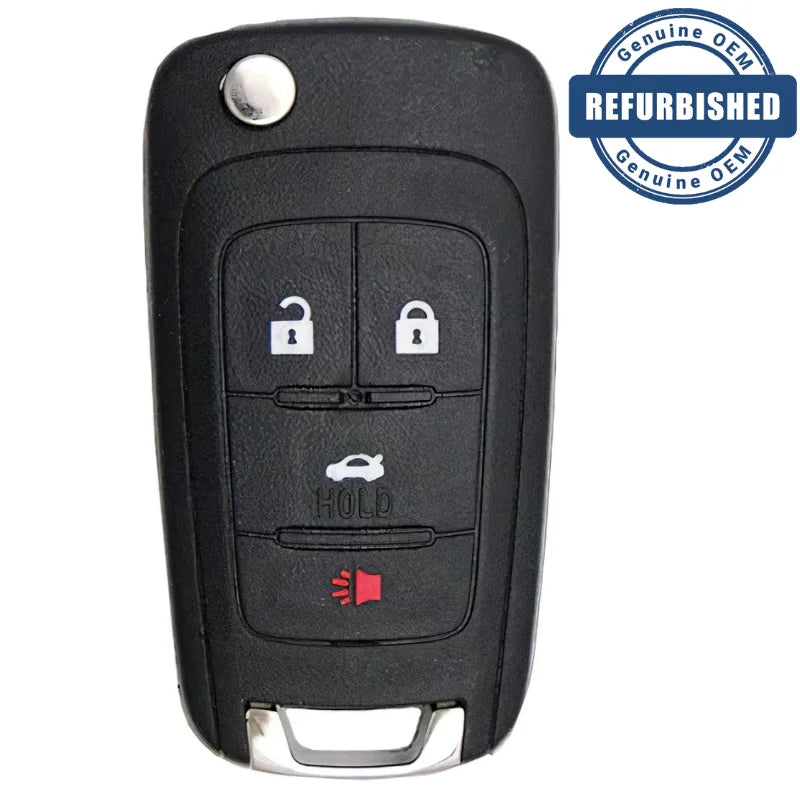

Description
This remote is Onboard Programmable. This means that you will be able to program the vehicle to accept the new remote yourself using the included instructions which are easy. If you have a working remote then the programming procedure will take only a few seconds to complete. If you do not have a working remote then the programming procedure will take 30 minutes to complete.
FCC ID of OHT01060512.
The GM part number is 13504205.
Strattec part number 5912555.
Programming Procedure #Pgm3
- With a previously learned master key, turn ON the ignition, with the engine OFF.
- Turn OFF the ignition and remove the key.
- Within 10 seconds of turning OFF the ignition, insert the key to be learned and turn ON the ignition. The vehicle has now learned the new key.
- To initiate, this procedure requires that a learned master key be available.
- A total of 10 keys may be programmed to a single vehicle.
- This procedure adds keys only. The procedure does not erase previously learned keys.
- The keys to be learned must duplicate the mechanical cut of the current key.
- If more than one valet key is to be learned, immediately precede each valet key with a learned master key.
Compatibility
