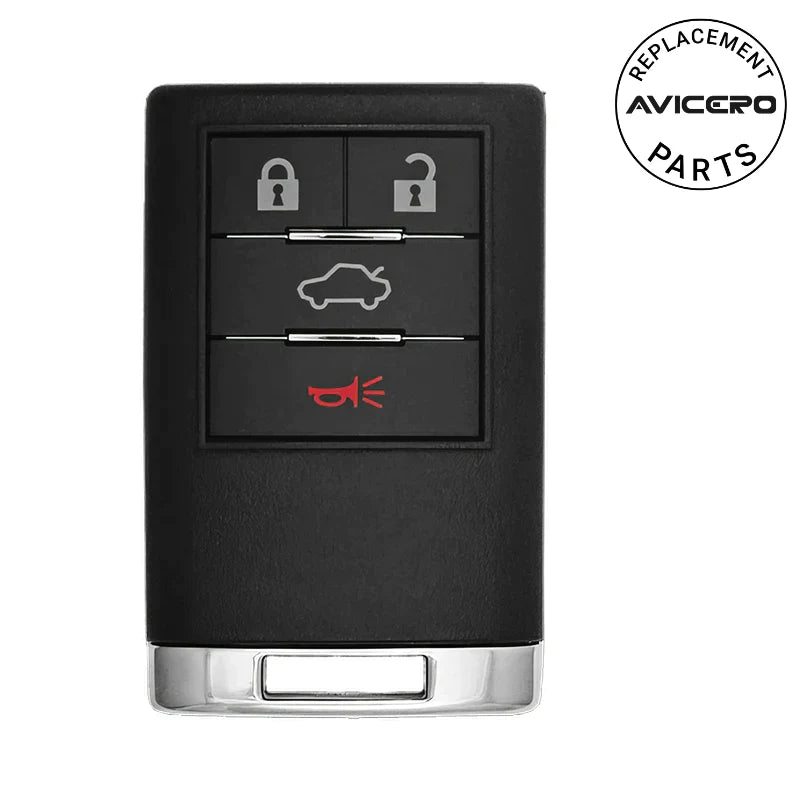

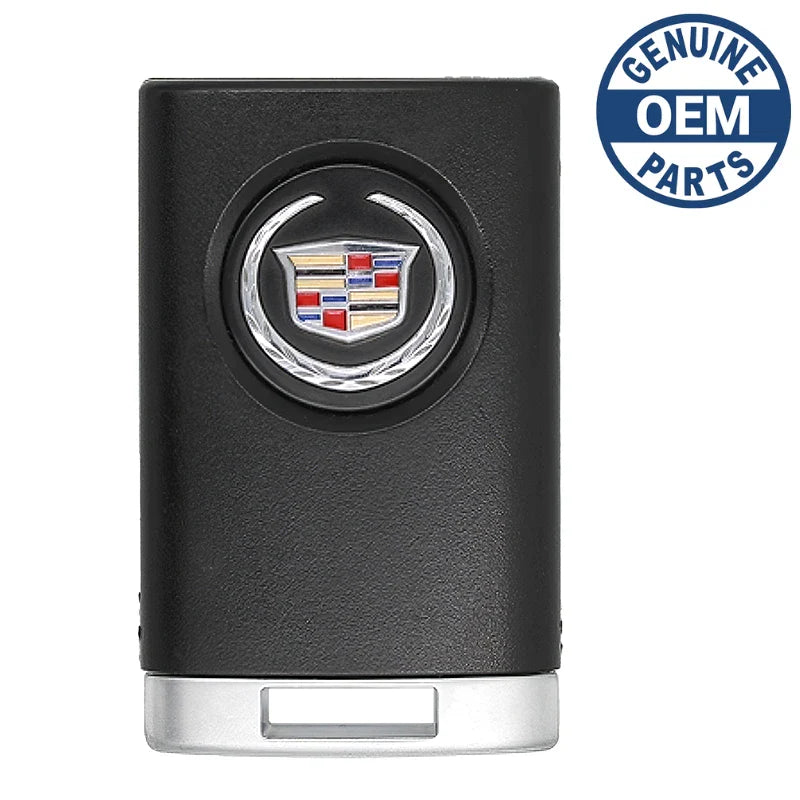

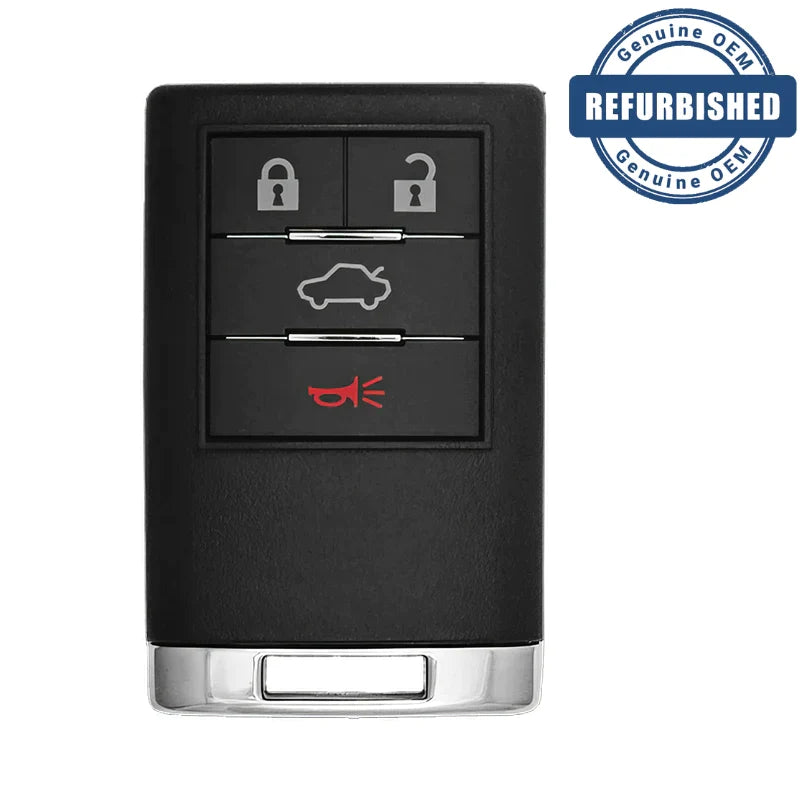

2011 Cadillac CTS Remote FCC ID: OUC6000066 PN: 22889449

SKU: 7041A-OEM

Condition: OEM New
Price:
Sale price$69.95 Regular price$198.00

Shipping calculated at checkout

Stock:
Only 3 units left

Description


FCC ID: OUC6000066
Cadillac Part Numbers: 20814369, 20818591, 20762973, 25840554, 20864934, 22889449
Strattec Part Number: 5923877
Brand: Avicero
Condition: New


Programming Procedure:

For Cadillac DTS 2008 you will need an automotive locksmith to program your vehicle to work with the new remote. You can find a local licensed automotive locksmith using the link below:
autolocksmithfinder.com

Programming Procedure for Cadillac DTS 2009-2010:
This display allows you to match Remote Keyless Entry (RKE) transmitters to your vehicle. This procedure will erase all previously learned transmitters. Therefore, they must be relearned as additional transmitters. To match an RKE transmitter to your vehicle:
1. Press the vehicle information button until PRESS ??TO RELEARN REMOTE KEY displays.
2. Press the set/reset button until REMOTE KEY LEARNING ACTIVE is displayed.
3. Press and hold the lock and unlock buttons on the first transmitter at the same time for about 15 seconds. On vehicles with memory recall seats, the first transmitter learned will match driver 1 and the second will match driver 2. A chime will sound indicating that the transmitter is matched.
4. To match additional transmitters at this time, repeat Step 3. Each vehicle can have a maximum of eight transmitters matched to it.
5. To exit the programming mode, you must cycle the key to LOCK/OFF.

Programming Procedure for Cadillac CTS:
To match a new transmitter to you vehicle when you have a recognized transmitter, do the following.
Two recognized transmitters are required for Canadian owners.
1. The vehicle must be off.
2. (Cadillac CTS 2008-2009): Have the recognized transmitter and the new, unrecognized transmitter(s) with you.
2. (Cadillac CTS 2010-2014): Place the recognized transmitter(s) in the cupholder. Have the new transmitter available with you
3. Insert the vehicle key into the key lock cylinder located on the outside of the driver's door.
4. Turn the key to the unlock position five times within five seconds.
5. The Driver Information Center (DIC) will display Ready To Learn Electronic Key #X, where X can be 2, 3, or 4.
6. Place the new, unrecognized transmitter into the transmitter pocket with the transmitter buttons facing the front of the vehicle. The transmitter pocket is inside the center console storage area located between the driver and front passenger seats.
7. Once the transmitters is programmed, a beep will sound. The DIC will display Ready To Learn Electronic Key #X, where X can be 3 or 4, or Maximum # Electronic Keys Learned.
8. Press the ignition control knob to exit programming mode.
9. Remove the transmitter from the transmitter pocket and press the unlock button on the keyless access transmitter two times.
10. To program additional transmitters, repeat steps 6 through 9.
The Canadian immobilizer standard requires Canadian owners to see their dealer/retailer for matching new transmitters when a recognized transmitter is not available.
The procedure will require three, ten minute cycles to complete the matching process.
1. The vehicle must be off.
2. Place the new, unrecognized transmitter into the transmitter pocket with the transmitter buttons facing the front of the vehicle. The transmitter pocket is inside the center console storage area located between the driver and the front passenger seats.
3. Insert the vehicle key into the key lock cylinder located on the driver's door.
4. Turn the key to the unlock position five times within five seconds.
5. The DIC will display Press Start Control To Learn Keys.
6. Press the ignition switch in.
7. The DIC will read Learn Delay Active Wait XX Min and will count down to zero, one minute at a time.
8. The DIC will again display Press Start Control To Lean Keys.
9. Press the ignition switch in again.
10. The DIC will again read Learn Delay Active Wait XX Min and will count down to zero, one minute at a time.
The DIC will display Press Start Control To Learn Keys again.
11. Press the ignition switch in again.
12. The DIC will again read Learn Delay Active Wait XX Min and will count down to zero, one minute at a time.
13. A beep will sound and the DIC will read Ready To Learn Electronic Key # X. At this time, all previously known transmitters have been erased.
14. Once the transmitter is recognized and programmed, a beep will sound and the DIC will display Ready To Learn Electronic Key # X.
15. To program additional transmitter, insert each transmitter in the pocket until you hear a beep and the DIC advances to the next electronic key number.
16. When complete, press the ignition control knob.
17. Press the unlock button on each transmitter programmed to complete programming.
Up to four transmitters can be programmed to the vehicle. The DIC will display Maximum # Electronic Keys Learned and will exit the programming mode.
After performing this process, transmitters previously programmed will no longer work with your vehicle and must be reprogrammed.


Works on:
Cadillac CTS (2008-2014), Cadillac DTS (2008-2010).
