2003 Toyota Corolla Remote GQ43VT14T 89742-06010 3 Button

SKU: 4220A-OEM

Condition: OEM New
Price:
Sale price$82.00 Regular price$85.46

Shipping calculated at checkout

Stock:
Ships in 3-5 days

Description

Works on:  2000-2001 Toyota Camry (Factory installed), 2000-2003 Toyota Celica (Factory installed), 2003-2008 Toyota Corolla, 2000-2003 Toyota Echo (Factory installed), 1999-2003 Toyota Sienna (No Power Sliding Door), 1999-2001 Toyota Solara (Factory installed).


Remote For Toyota:

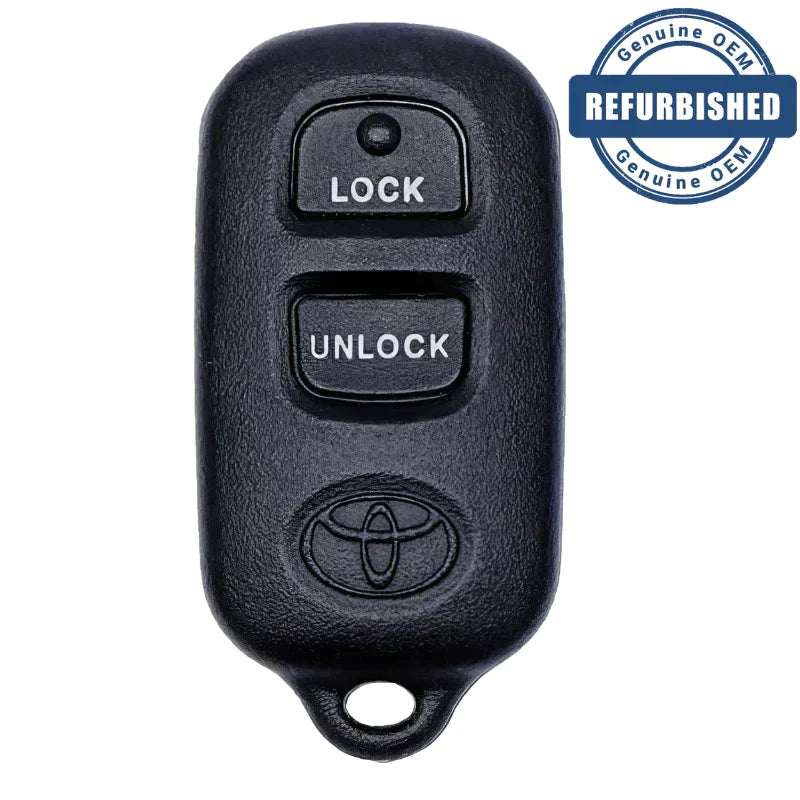

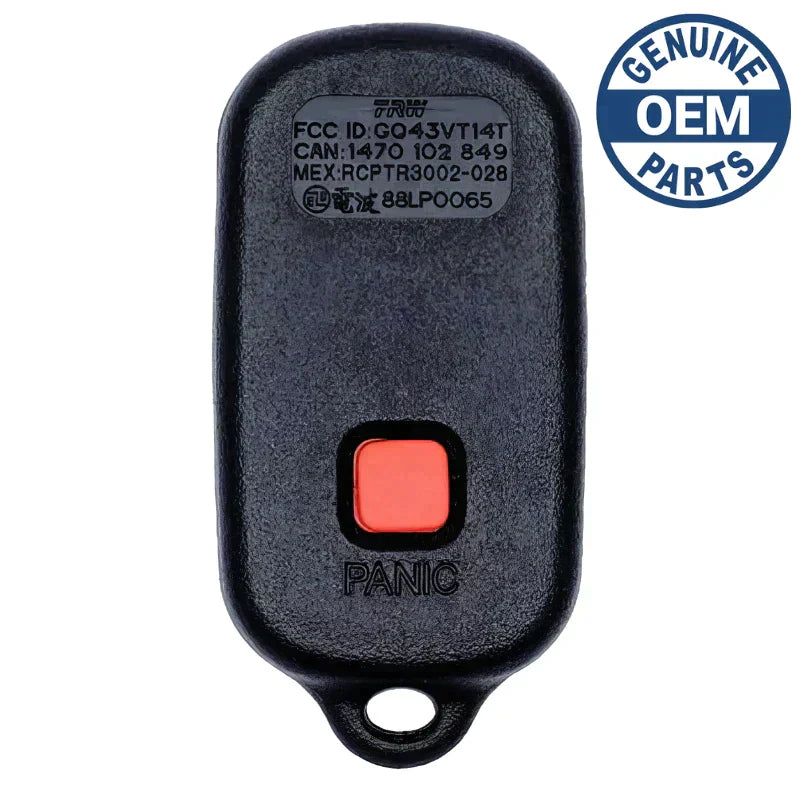

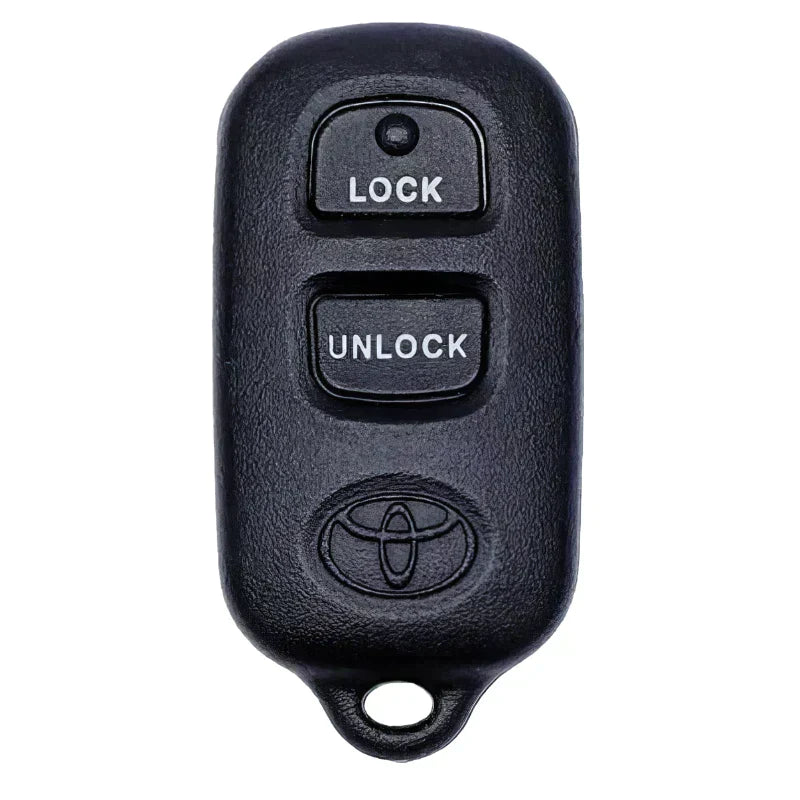

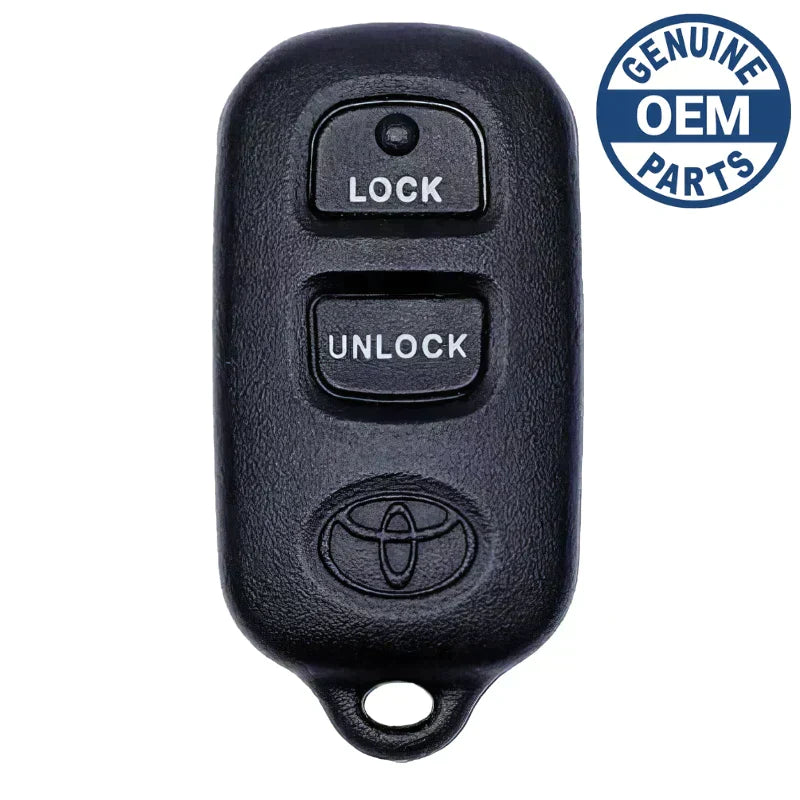

Remote has an FCC ID of GQ43VT14T. It has LOCK and UNLOCK buttons on the front and a PANIC button on the back. This remote sends signals at 315MHz. We test the remote before shipping it to you to ensure that it is sending proper signals.


Programming Procedure:

  • For 2000-2001 Camry, 1999-2003 Sienna, 1999-2001 Solora.

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other door locks don?? matter).
2. Insert the key into the ignition (don?? turn it) and pull it out.
3. Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed by pressing the power unlock switch on the driver?? door panel. Use an even pace and try to go relatively fast.
b. Close, then open the drivers door.
4. Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock (just as you did previously).
b. Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
c. Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
d. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the LOCK and UNLOCK buttons on the first transmitter simultaneously for 1 second and release.
b. Immediately after letting go of the LOCK and UNLOCK buttons, press the UNLOCK button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks don?? cycle, or cycle twice, repeat steps 6a and 6b as the remote has not been accepted.
c. Repeat steps 6a and 6b for each transmitter that will operate the vehicle, including any old transmitters.
7. Close driver door.


  •  For 2001-2003 Celica, 2004-2008 Corolla, 2000-2003 Echo.

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).
2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.
3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.
4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition.
d. Close the driver?? door.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second.
b. Immediately after releasing the lock and unlock buttons, press the unlock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
7. Open driver?? door.


  • For 2000 Celica.

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).
2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.
3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.
4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second and release.
b. Immediately after releasing the lock and unlock buttons, press the lock button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
c. Within 40 seconds, repeat steps 6a and 6b for each additional transmitter.
7. Open driver?? door.
8. Test transmitter(s) for function.


  • For 2003 Corolla.

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).
2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.
3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.
4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second and release.
b. Immediately after releasing the lock and unlock buttons, press the unlock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
c. Within 40 seconds, repeat steps 6a and 6b for each additional transmitter.
7. Open driver?? door.


The following vehicles can use this remote when equipped with the factory keyless entry system:

Toyota Camry (2000-2001), Toyota Celica (2000-2003), Toyota Corolla (2003-2008), Toyota Echo (2000-2003), Toyota Sienna (1999-2003), Toyota Solara (1999-2001).
