2002 Toyota Sienna Remote GQ43VT14T 4 Button Dual Sliding Doors

SKU: 4223A-OEM

Condition: OEM New
Price:
Sale price$120.00 Regular price$124.36

Shipping calculated at checkout

Stock:
Only 2 units left

Description

Works with:
2001 - 2003 Toyota Sienna with 2 Power Sliding Doors

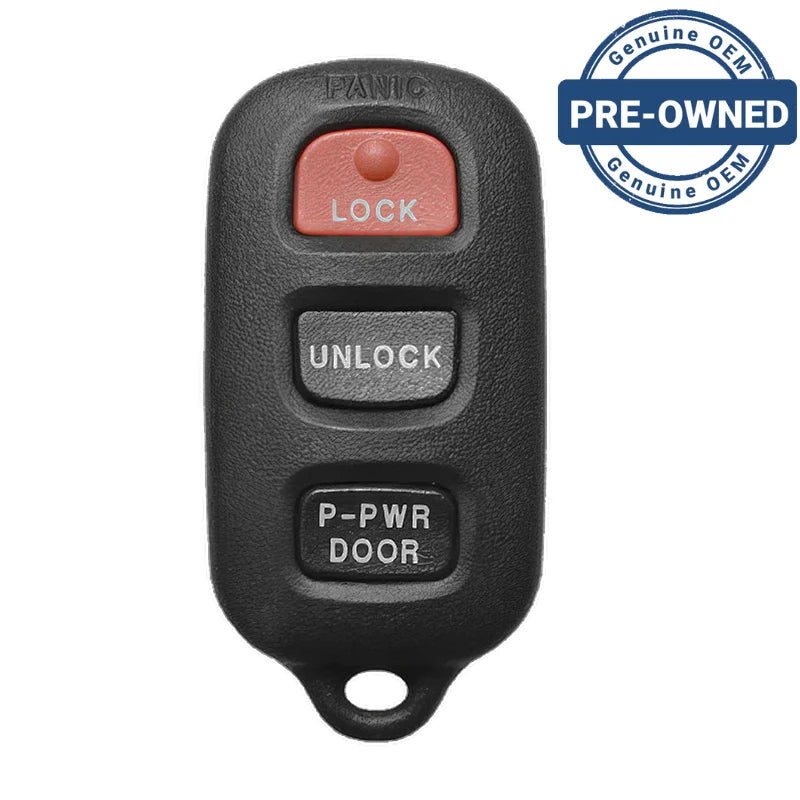

This is a replacement for Toyota Sienna 4 button remote FCC ID GQ43VT14T. Remote is tested on a keyless entry tester for radio signal strength, battery strength, and proper functioning before shipping to you. This remote transmits at 315 MHz.  It has no LED light.  The 3 buttons on the front are: LOCK (Hold for Panic,) UNLOCK, Passenger side POWER SLIDING DOOR.  On the back is Driver Side POWER SLIDING DOOR.

PROGRAMMING INSTRUCTIONS:

1.  Start with the following conditions:
a.  Key is out of the ignition
b.  Driver door is open (all other doors are closed)
c.  Driver door is unlocked (other door locks don?? matter).

2.  Insert the key into the ignition (don?? turn it) and pull it out.

3.  Perform these steps within 40 seconds:
a.  Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed by pressing the power unlock switch on the driver?? door panel. Use an even pace and try to go relatively fast.
b.  Close, then open the drivers door.

4.  Perform these steps within 40 seconds:
a.  Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock (just as you did previously).
b.  Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
c.  Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
d.  Remove the key from the ignition.

5.  Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6.  Perform these steps within 40 seconds:
a.  Press the LOCK and UNLOCK buttons on the first transmitter simultaneously for 1 second and release.
b.  Immediately after letting go of the LOCK and UNLOCK buttons, press the UNLOCK button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks don?? cycle, or cycle twice, repeat steps 6a and 6b as the remote has not been accepted.
c.  Repeat steps 6a and 6b for each transmitter that will operate the vehicle, including any old transmitters.

7.  Close driver door.
