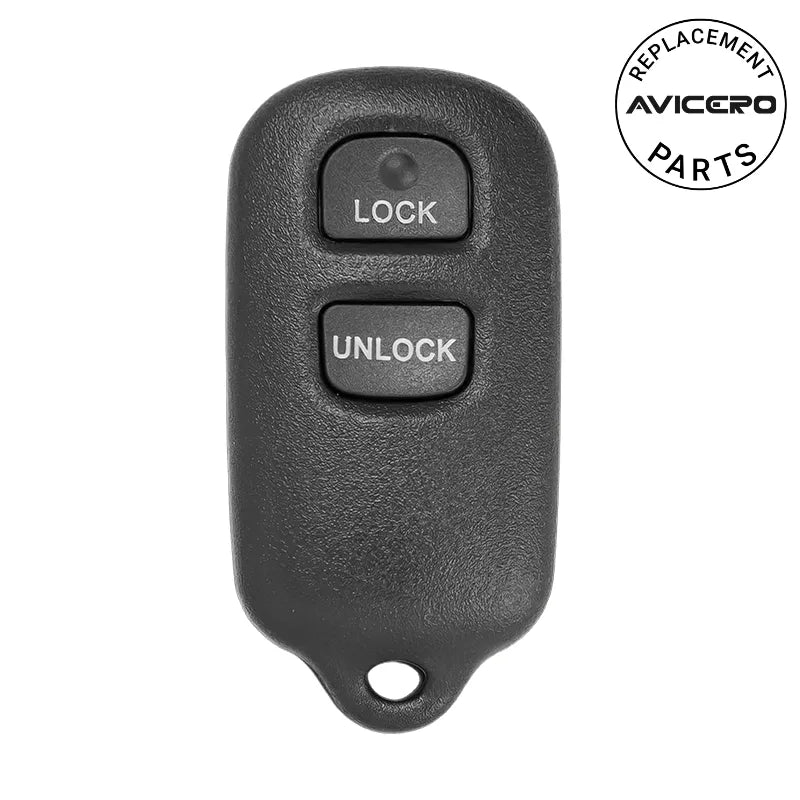

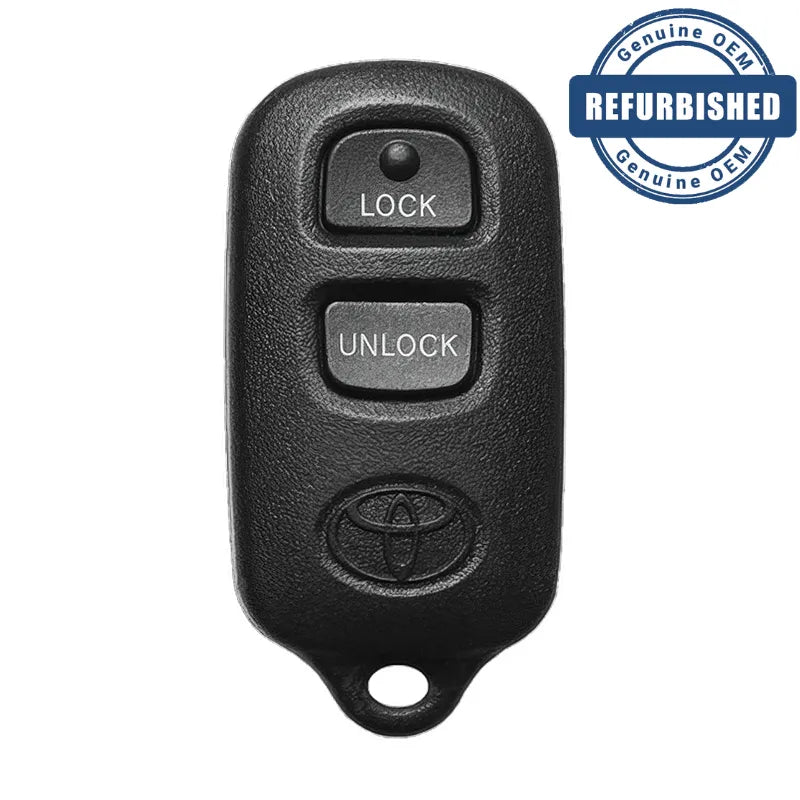

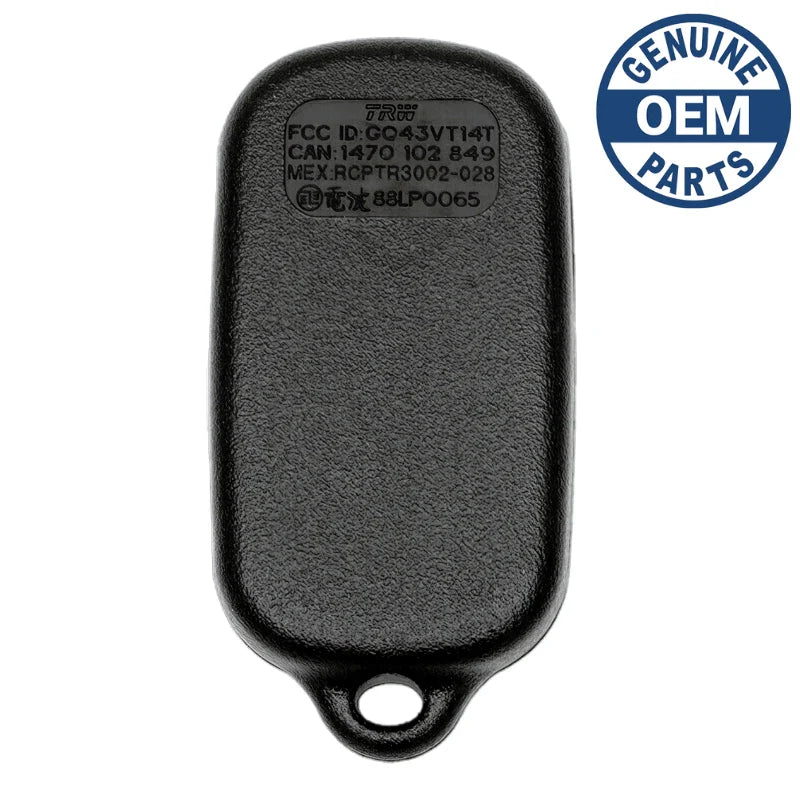

2002 Toyota Prius Remote HYQ12BAN HYQ12BBX 89742-42120 3 Button

SKU: 4245A-OEM

Condition: OEM New
Price:
Sale price$104.95 Regular price$134.06

Shipping calculated at checkout

Stock:
Only 3 units left

Description

All vehicles that use this remote are onboard programmable, meaning you can program the vehicle to accept new remotes yourself without any special tools or knowledge. Free phone tech support is available if needed.


Remote For Toyota:

This is a replacement for Toyota Part Numbers 89742-20200, 89742-0C020, 89742-42120 and FCC ID HYQ12BAN or HYQ12BBX with 3 buttons. Remote is tested on a keyless entry tester for radio signal strength, battery strength, and proper functioning before shipping to you.  This works on: 2004-2005 Toyota Celica, 2004-2005 Toyota Echo, 2007-2008 FJ Cruiser, 2001-2007 Toyota Highlander, 2001-2003 Toyota Prius, 2001-2003 Toyota RAV-4 (Factory installed system), 2004-2005 Toyota Rav-4, 2004-2005 Toyota Tundra, 2006 Toyota Tundra (Double Cab and Single Cab).


Programming Procedure:

  • For 2004-2005 Celica, 2004-2005 Echo, 2001 and 2003 Highlander, 2001-2003 Prius, 2002-2003 Rav-4, 2005 Tundra:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).

2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.

3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.

4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition.
d. Close the driver?? door.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second.
b. Immediately after releasing the lock and unlock buttons, press the unlock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.

7. Open driver?? door.


  • For 2004 Tundra:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other door locks don?? matter).

2. Insert the key into the ignition (don?? turn it) and pull it out.

3. Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed by pressing the power unlock switch on the driver?? door panel. Use an even pace and try to go relatively fast.
b. Close, then open the drivers door.

4. Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock (just as you did previously).
b. Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
c. Turn the ignition to ON (as far as you can go without cranking your engine), then back to OFF.
d. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the LOCK and UNLOCK buttons on the first transmitter simultaneously for 1 second and release.
b. Immediately after letting go of the LOCK and UNLOCK buttons, press the UNLOCK button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks don?? cycle, or cycle twice, repeat steps 6a and 6b as the remote has not been accepted.
c. Repeat steps 6a and 6b for each transmitter that will operate the vehicle, including any old transmitters.

7. Close driver door.


  • For 2002 and 2004-2005 Highlander, 2001 Rav-4:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).

2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.

3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.

4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second and release.
b. Immediately after releasing the lock and unlock buttons, press the lock button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
c. Within 40 seconds, repeat steps 6a and 6b for each additional transmitter.

7. Open driver?? door.


  • For 2004-2005 Rav-4:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).

2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.

3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.

4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second and release.
b. Immediately after releasing the lock and unlock buttons, press the unlock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
c. Within 40 seconds, repeat steps 6a and 6b for each additional transmitter.

7. Open driver?? door.


  • For 2006-2007 FJ Cruiser, 2006-2007 Highlander:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).

2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.

3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.

4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second and release.
b. Immediately after releasing the lock and unlock buttons, press the lock button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.

7.  Open driver?? door.


  • For 2006 Tundra Double Cab:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is OPEN (all other doors are closed).
c. Driver door is unlocked.

2. Insert the key into the ignition (don?? turn it) and pull it out.
3. Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed by pressing the power unlock switch on the driver?? door panel. Use an even pace and try to go relatively fast.
b. Close then open the driver?? door.

4. Perform these steps within 40 seconds:
a. Perform 5 lock/unlock cycles again with the switch on the driver?? door starting with lock.
b. Insert the key in the ignition cylinder.
c. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
d. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the LOCK and UNLOCK buttons on the transmitter simultaneously for 1 second and release.
b. Immediately after letting go of the lock and unlock buttons, press the UNLOCK button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice (two lock and unlock cycles), this means your remote has not been accepted. Repeat steps 6a and 6b until the door locks cycle only once.
c. Repeat steps 6a and 6b for each remote including old ones.

7. Close the driver?? door.


  • For 2006 Tundra Single Cab:

1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other doors don?? matter).

2. Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.

3. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.

4. Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition.
d. Close the driver?? door.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
f. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.

6. Perform these steps within 40 seconds:
a. Press the lock and unlock buttons on the transmitter simultaneously for 1 second.
b. Immediately after releasing the lock and unlock buttons, press the lock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
c. Repeat steps A and B for each new remote.

7. Open driver?? door.


The following vehicles can use this remote when equipped with the factory keyless entry system:

Toyota Celica (2004-2005), Toyota Echo (2004-2005), Toyota FJ Cruiser (2007-2008), Toyota Highlander (2001-2007), Toyota Prius (2001-2003), Toyota RAV4 (2001-2003), Toyota RAV4 (2004-2005), Toyota Tundra (2004-2005), Toyota Tundra (2006).
