Description
Extended warranty is available on the checkout page.
This remote has 4 buttons, tested and guaranteed to work. When there aren't 2 working keys to use to initiate programming, an automotive locksmith is required for programming. If there are two keys already working with the vehicle, this can be programmed with an included easy to use customer programming procedure.
Remote For Ford:

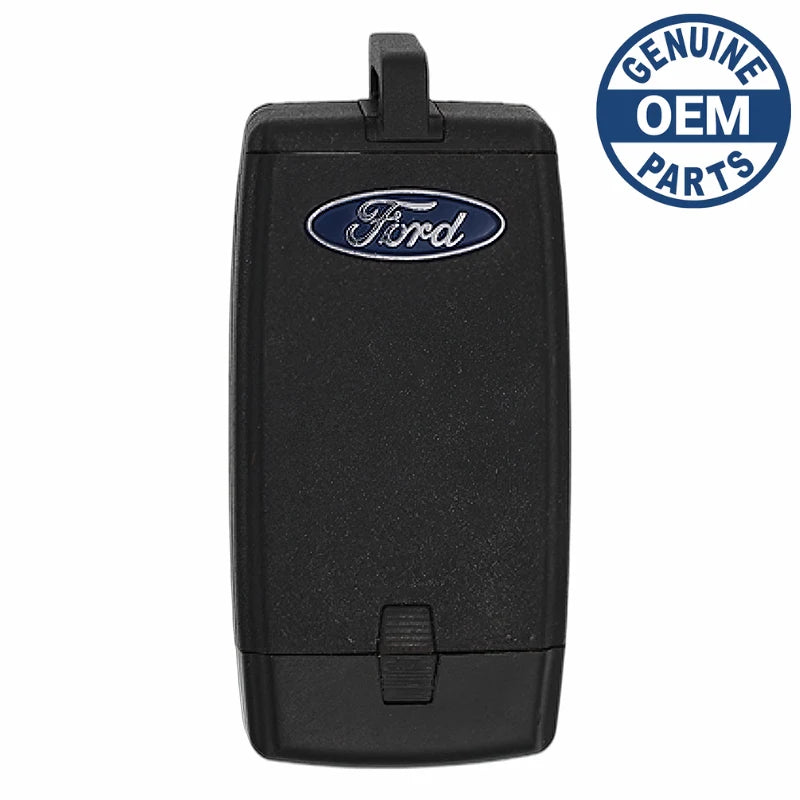

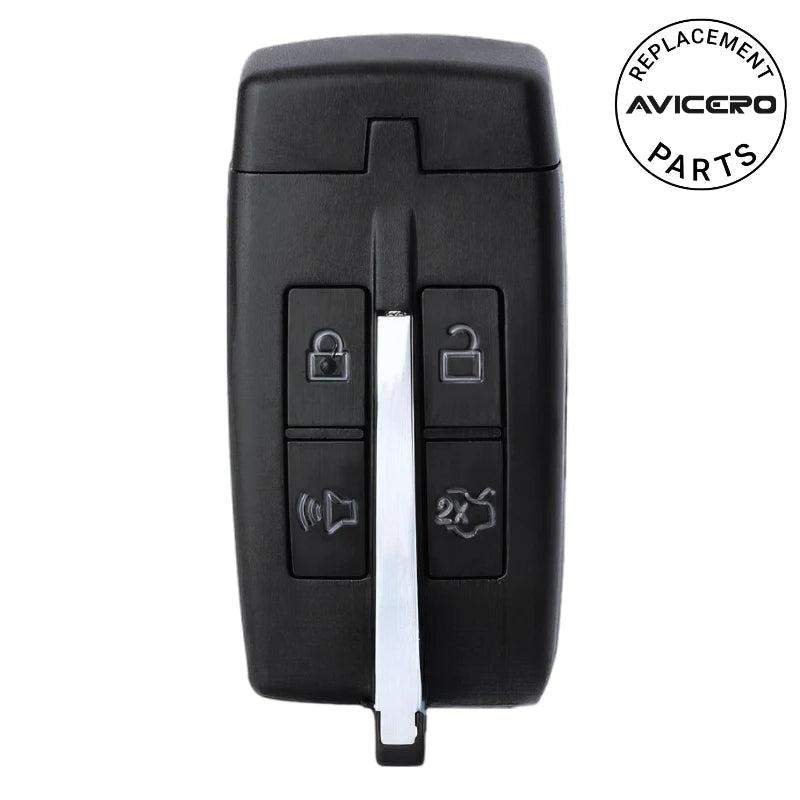

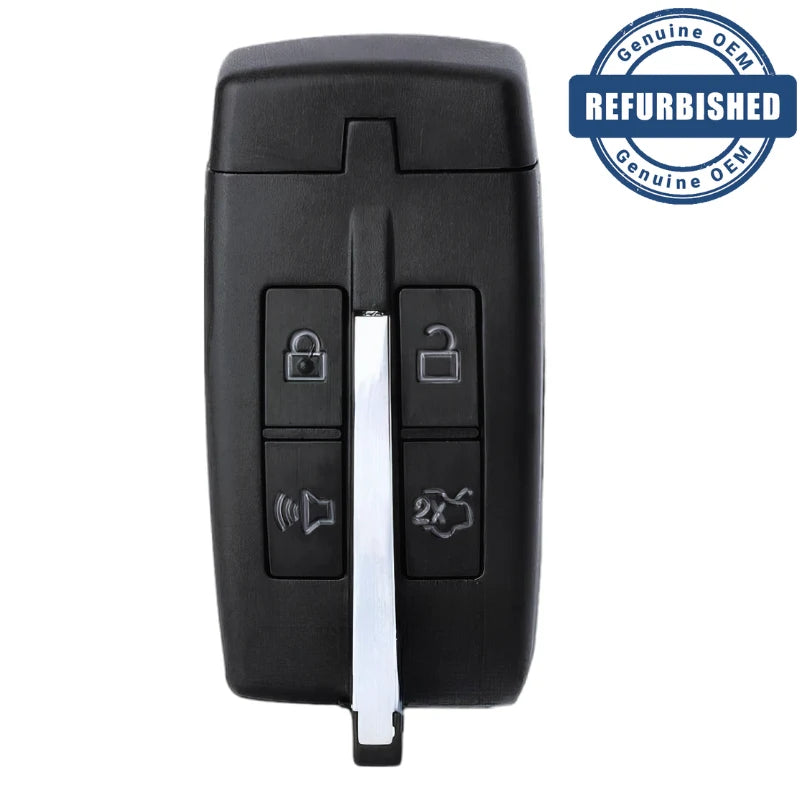

Factory Smart Key Remote with FCC ID M3N5WY8406.
The Ford part number is 164-R7034.
The Strattec part number is 5914118 and 5914119.
Programming Procedure:
1. Place the new un-programmed intelligent access key in the pocket inside the center console utility compartment.
2. Press the driver or passenger power door unlock control three times.
3. Press and release the brake pedal one time.
4. Press the driver or passenger power door lock control three times.
5. Press and release the brake pedal one time. The indicator on the Start/Stop button should begin to rapidly flash, indicating that the programming mode has been entered and two programmed intelligent access keys have been detected in the vehicle.
6. Within one minute, press the start/stop button. A message will be displayed on the message center indicating that the new Intelligent Access Key was programmed. If four intelligent access keys have already been programmed to your vehicle, you cannot program anymore and the message. MAX # OF KEYS LEARNED will be displayed on the message center.
7. Remove Intelligent Access Key from utility compartment pocket and press the unlock or lock control on the newly programmed intelligent access keys to exit programming mode.
8. Verify that the remote entry functions operate (lock, unlock) and that the vehicle starts with new Intelligent Access Key. If the Intelligent Access Key has been successfully programmed, it can be used to activate the Intelligent Access with Push Button Start feature and can be used to start your vehicle.
The following vehicles can use this remote when equipped with the factory keyless entry system:
Ford Taurus (2010-2012).
Specifications
Part Numbers: 5914118, 5914119, and 164-R7034
FCC ID: M3N5WY8406
Buttons: Lock, Unlock, Panic, and Trunk
Frequency: 315 Mhz
Remote Programming:
Led:
Battery (included) : CR2032
